Manifold Absolute Pressure (MAP) Sensor: Removal
WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- 1.

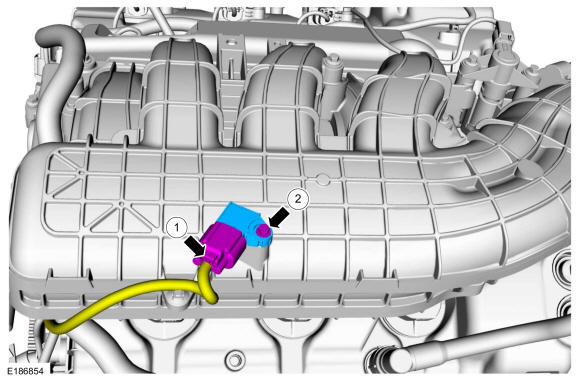

- Disconnect the MAP sensor electrical connector.
- Remove the retainer and the MAP sensor.
Torque
: 35 lb.in (4 Nm)
 Courtesy of FORD MOTOR COMPANY
|
