Cylinder Head Temperature (CHT) Sensor: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

1.

Remove the lower intake manifold. REFER to: LOWER INTAKE MANIFOLD .

2.

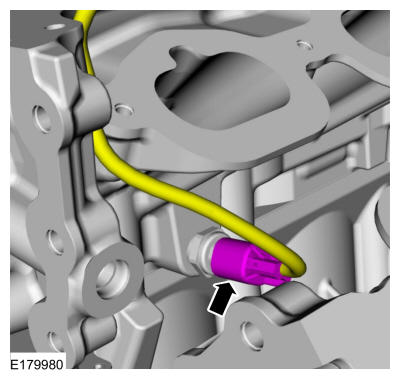

Disconnect the CHT electrical connector.

Courtesy of FORD MOTOR COMPANY

3.

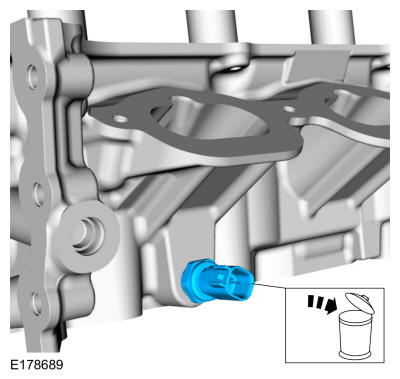

NOTE: Do not reuse the CHT sensor, install a new sensor.

Remove and discard the CHT sensor.

Torque

: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
