Variable Camshaft Timing (VCT) Oil Control Solenoid: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

RH (right-hand) Variable Camshaft Timing (VCT) Oil Control Solenoids

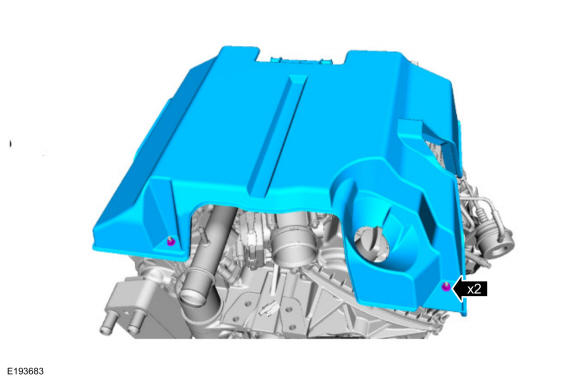

1.

Remove the nuts and the engine appearance cover.
Torque

: 42 lb.in (4.8 Nm)

Courtesy of FORD MOTOR COMPANY

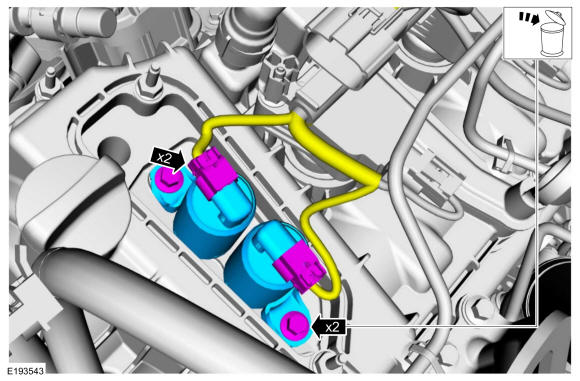

2.

Disconnect the electrical connectors, remove the bolts and the RHVCT oil control solenoids.
Torque

: 97 lb.in (11 Nm)

Courtesy of FORD MOTOR COMPANY

LH (left-hand) Variable Camshaft Timing (VCT) Oil Control Solenoids

3.

Remove the nuts and the engine appearance cover.
Torque

: 42 lb.in (4.8 Nm)

Courtesy of FORD MOTOR COMPANY

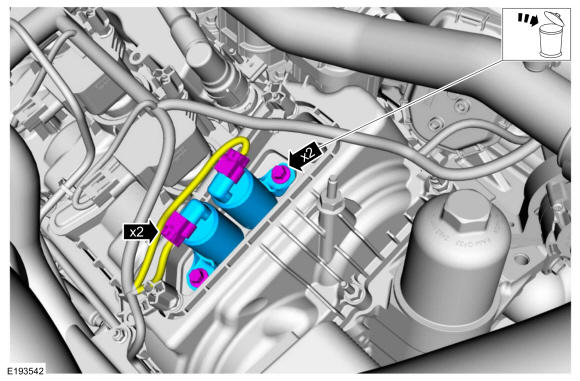

4.

Disconnect the electrical connectors, remove the bolts and the LHVCT oil control solenoids.
Torque

: 97 lb.in (11 Nm)

Courtesy of FORD MOTOR COMPANY
