Oil Pressure Control Solenoid: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.

  1. 1.

    With the vehicle in NEUTRAL, position it on a hoist. REFER to: Jacking and Lifting - Overview .

  1. 2.

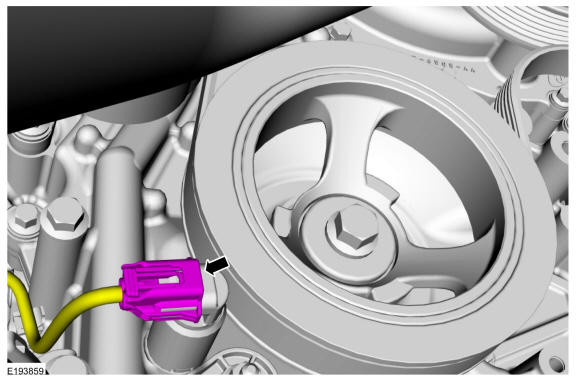

    Disconnect the oil pressure control solenoid electrical connector.
GFD41205Courtesy of FORD MOTOR COMPANY

  1. 3.

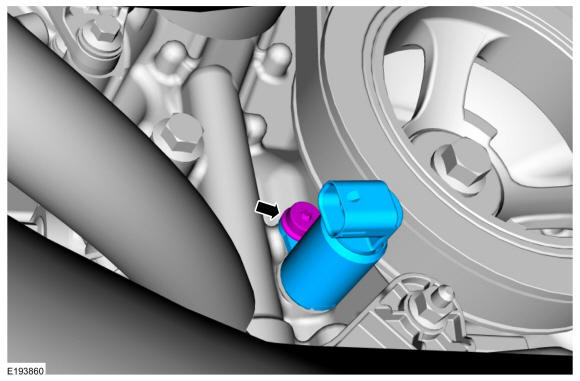

    Remove the retainer and the oil pressure control solenoid.

    Torque

    : 97 lb.in (11 Nm)

GFD41206Courtesy of FORD MOTOR COMPANY
