Manifold Absolute Pressure (MAP) Sensor: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

1.

Remove the nuts and the engine appearance cover.
Torque

: 42 lb.in (4.8 Nm)

Courtesy of FORD MOTOR COMPANY

2.

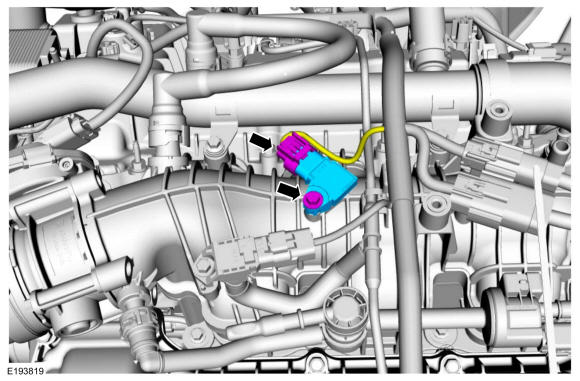

Disconnect the electrical connector, remove the retainers and the MAP sensor.
Torque

: 53 lb.in (6 Nm)

Courtesy of FORD MOTOR COMPANY
