Knock Sensor (KS): Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

1.

Remove the coolant outlet connector. REFER to: COOLANT OUTLET CONNECTOR .

2.

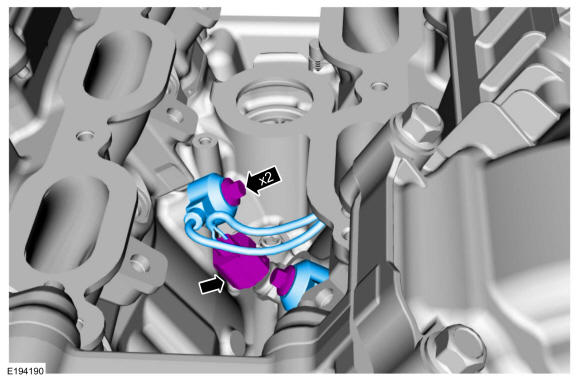

Disconnect the ECT sensor connector, remove retainers and the KS.
Torque

: 97 lb.in (11 Nm)

Courtesy of FORD MOTOR COMPANY
