Fuel Rail Pressure (FRP) Sensor: Removal
WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- 1.
Remove the LH fuel rail. REFER to: FUEL RAIL .
- 2.

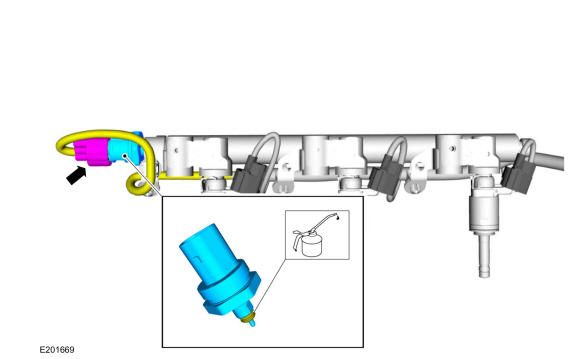

Disconnect the electrical connector, remove the FRP sensor.Material
: Motorcraft® SAE 5W-30 Premium Synthetic Blend Motor Oil / XO-5W30-QSP (WSS-M2C946-A)
Torque:
Stage 1: 44 lb.in (5 Nm)
Stage 2: 19°
