Engine Oil Pressure (EOP) Sensor: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan, can cause engine failure.

1.

Remove the following items:
- RH side only. REFER to: AIR CLEANER OUTLET PIPE RH . REFER to: CHARGE AIR COOLER (CAC) OUTLET PIPE .

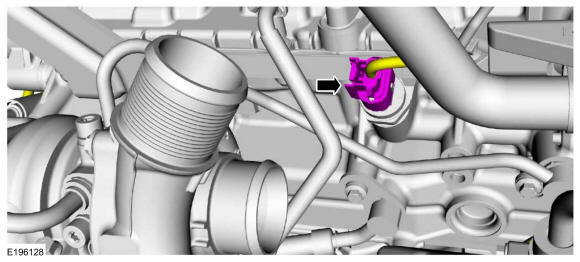

2.

Disconnect the EOP sensor electrical connector.

Courtesy of FORD MOTOR COMPANY

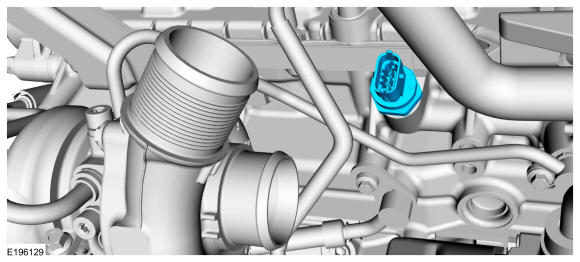

3.

Remove the EOP sensor.
Torque

: 24 lb.ft (33 Nm)

Courtesy of FORD MOTOR COMPANY
