Engine Coolant Temperature (ECT) Sensor: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.

  1. 1.

    Remove the coolant outlet connector. REFER to: COOLANT OUTLET CONNECTOR .

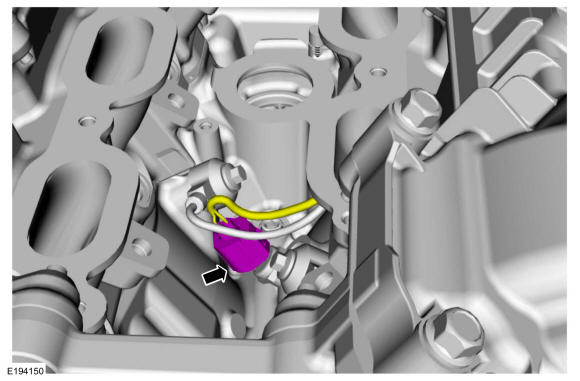

  1. 2.

    Disconnect the ECT sensor electrical connector.
GFD41191Courtesy of FORD MOTOR COMPANY

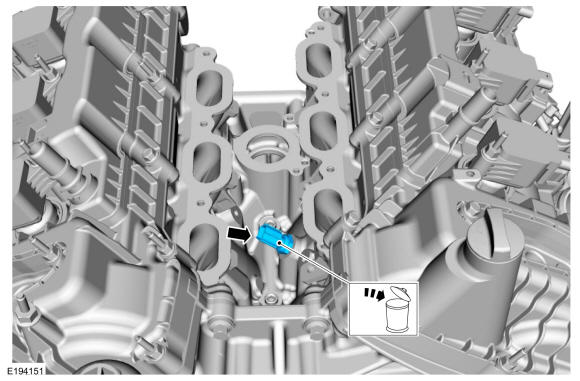

  1. 3.

    NOTE: Do not reuse the ECT sensor, install a new sensor.

    Remove and discard the ECT sensor.

    Torque

    : 142 lb.in (16 Nm)

GFD41192Courtesy of FORD MOTOR COMPANY
