Cylinder Head Temperature 2 (CHT2) Sensor: Removal
WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

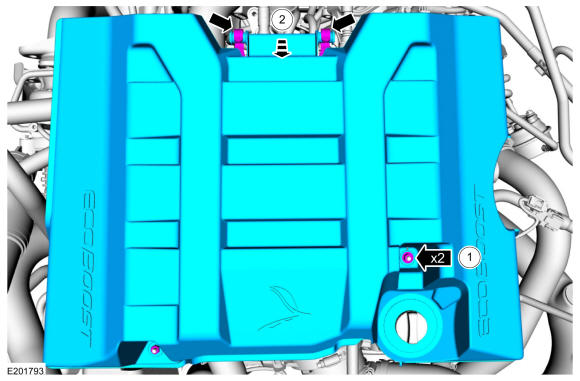

- 1.
Remove the nuts and the engine appearance cover.Torque
: 42 lb.in (4.8 Nm)
 Courtesy of FORD MOTOR COMPANY
|

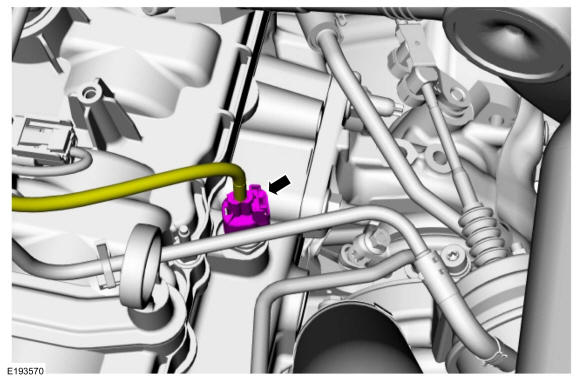

- 2.
Disconnect the CHT2 sensor electrical connector.
 Courtesy of FORD MOTOR COMPANY
|

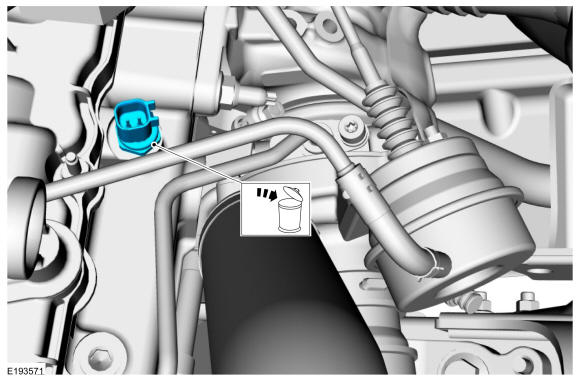

- 3.
NOTE:
Do not reuse the CHT2 sensor, install a new sensor.
Remove and discard the CHT2 sensor.
Torque
: 106 lb.in (12 Nm)
 Courtesy of FORD MOTOR COMPANY
|
