Crankshaft Position (CKP) Sensor: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.

  1. 1.

    Remove the RH fender splash shield. REFER to: Fender Splash Shield .

  1. 2.

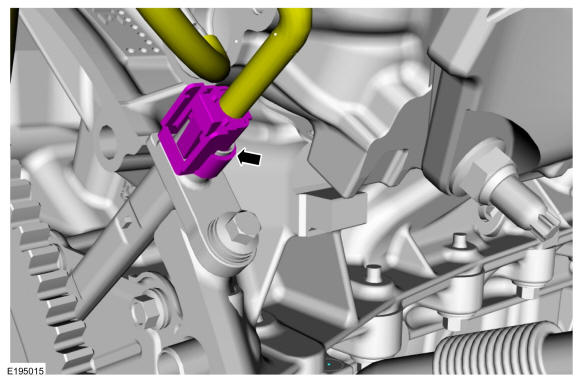

    Disconnect the CKP sensor electrical connector.
GFD41187Courtesy of FORD MOTOR COMPANY

  1. 3.

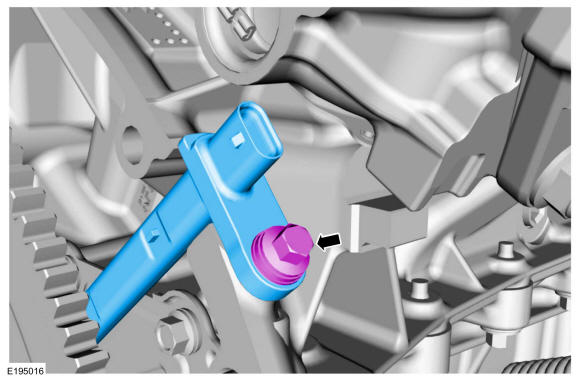

    Remove the retainer and CKP sensor.

    Torque

    : 89 lb.in (10 Nm)

GFD41188Courtesy of FORD MOTOR COMPANY
