Camshaft Position (CMP) Sensor: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

RH (right-hand) Camshaft Position (CMP) Sensors

1.

Remove the nuts and the engine appearance cover.
Torque

: 42 lb.in (4.8 Nm)

GFD41161

Courtesy of FORD MOTOR COMPANY

2.

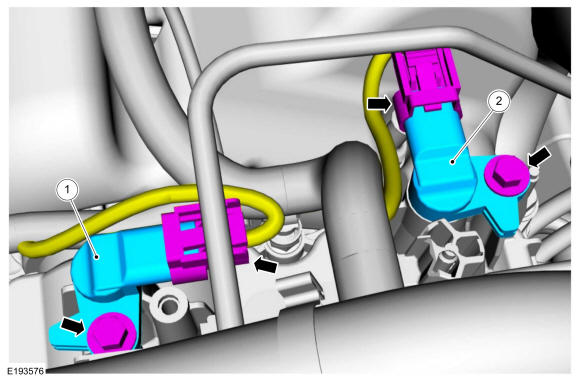

- Disconnect the exhaust CMP sensor electrical connector, remove the retainer and the CMP sensor.
  Material

  : Motorcraft® SAE 5W-30 Premium Synthetic Blend Motor Oil / XO-5W30-QSP (WSS-M2C946-A)

  Torque

  : 97 lb.in (11 Nm)
- Disconnect the intake CMP sensor electrical connector, remove the retainer and the CMP sensor.
  Material

  : Motorcraft® SAE 5W-30 Premium Synthetic Blend Motor Oil / XO-5W30-QSP (WSS-M2C946-A)

  Torque

  : 97 lb.in (11 Nm)

GFD41178

Courtesy of FORD MOTOR COMPANY

LH (left-hand) Camshaft Position (CMP) Sensors

3.

Remove the nuts and the engine appearance cover.
Torque

: 42 lb.in (4.8 Nm)

GFD41161

Courtesy of FORD MOTOR COMPANY

4.

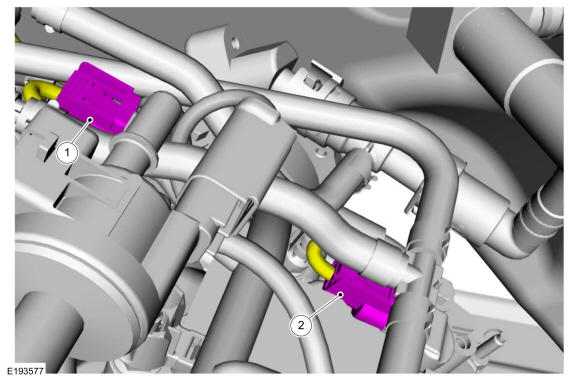

- Disconnect the intake CMP sensor electrical connector.
- Disconnect the exhaust CMP sensor electrical connector.

GFD41179

Courtesy of FORD MOTOR COMPANY

5.

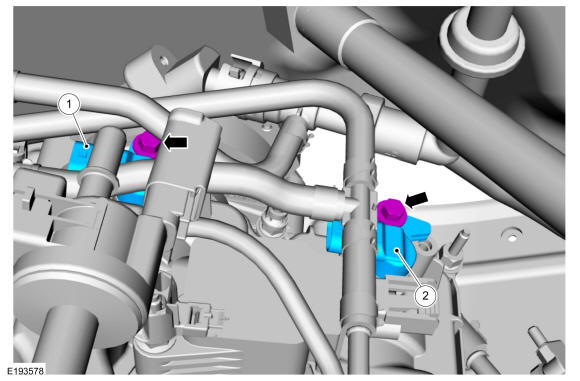

- Remove the retainer and the intake CMP sensor.
  Material

  : Motorcraft® SAE 5W-30 Premium Synthetic Blend Motor Oil / XO-5W30-QSP (WSS-M2C946-A)

  Torque

  : 97 lb.in (11 Nm)
- Remove the retainer and the exhaust CMP sensor.
  Material

  : Motorcraft® SAE 5W-30 Premium Synthetic Blend Motor Oil / XO-5W30-QSP (WSS-M2C946-A)

  Torque

  : 97 lb.in (11 Nm)

GFD41180

Courtesy of FORD MOTOR COMPANY
