Ignition Coil-On-Plug: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

1.

Disconnect the ignition coil-on-plug electrical connectors.

Courtesy of FORD MOTOR COMPANY

2.

NOTE: Use compressed air to remove any foreign material from the ignition coil-on-plugs and surrounding area before removing.

NOTE: When removing the ignition coil-on-plugs, a slight twisting motion will break the seal and ease the removal.

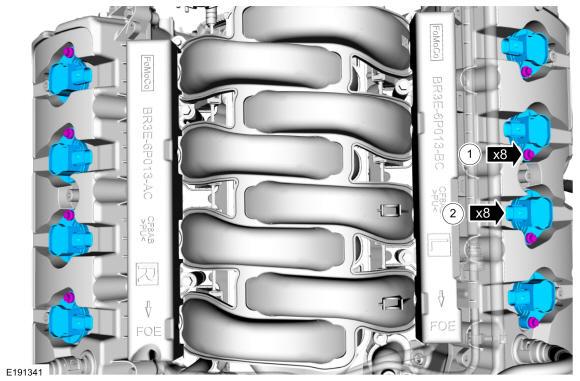

- 1.

  Remove the ignition coil-on-plug retaining bolts.
- 2.

  Remove the ignition coil-on-plugs.

Courtesy of FORD MOTOR COMPANY
