Ignition Coil-On-Plug: Installation

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

1.

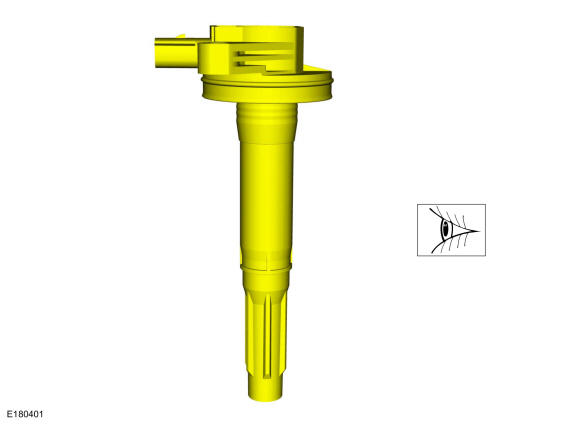

Inspect the ignition coil-on-plug assembly for cracks, rips, or tears. Replace any damaged coil-on-plug assemblies.

Courtesy of FORD MOTOR COMPANY

2.
- 1.

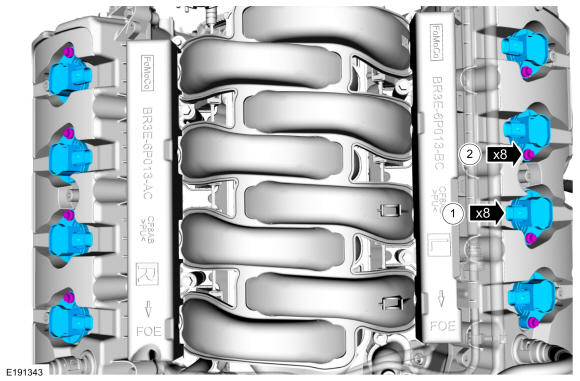

  Install the ignition coil-on-plugs.
- 2.

  Install and then tighten the ignition coil-on-plug retaining bolts in the following 2 stages.
  Torque:

  Stage 1: 62 lb.in (7 Nm)

  Stage 2: 45°

Courtesy of FORD MOTOR COMPANY

3.

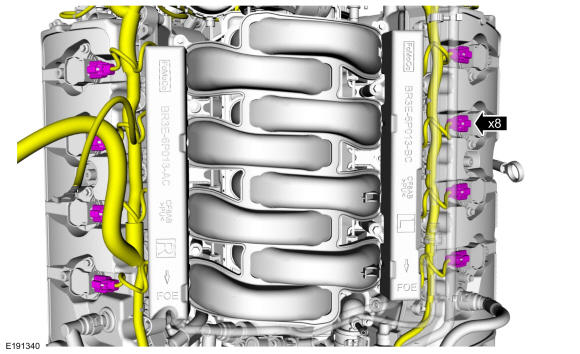

Connect the ignition coil-on-plug electrical connectors.

Courtesy of FORD MOTOR COMPANY
