Ignition Coil-On-Plug: Installation
WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
- 1.
Inspect the ignition coil-on-plugs. Replace any damaged ignition coil-on-plugs. Replace any of the ignition coil-on-plug seals or rubber boots with cracks, rips or tears.
- 2.

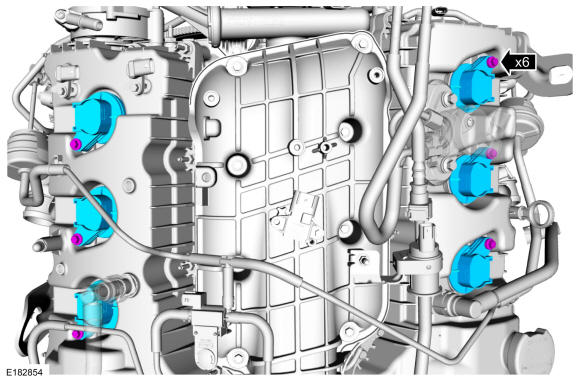

Install the ignition coil-on-plugs, then install and tighten the ignition coil-on-plug bolts.Torque:
Stage 1: 62 lb.in (7 Nm)
Stage 2: 50°
- 3.

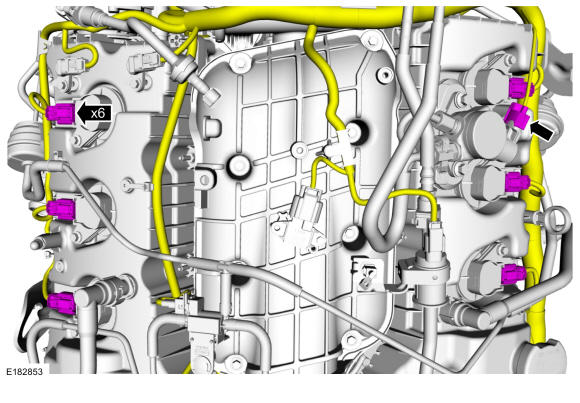

Connect the ignition coil-on-plug electrical connectors and then connect the high-pressure fuel pump electrical connector.
- 4.NOTE: When removing or installing the high-pressure fuel pump noise insulator, spreading the openings will reduce the risk of damage.
Install the high-pressure fuel pump noise insulator and then install the high-pressure fuel pump noise insulator retainer.
- 5.
Remove the oil filler cap and then install the engine appearance cover. Install the oil filler cap.
