Ignition Coil-On-Plug: Installation

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Both sides

1.

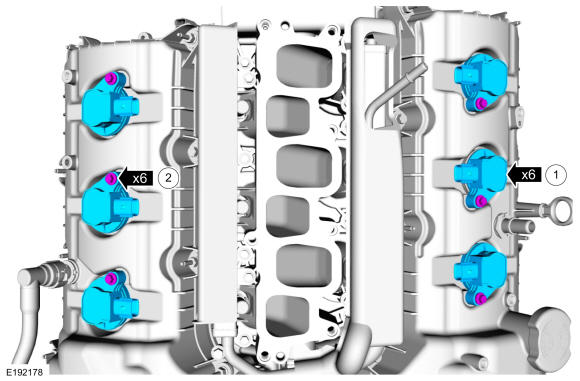

Inspect the ignition coil-on-plugs. Replace any damaged ignition coil-on-plugs. Replace any of the ignition coil-on-plug seals or rubber boots with cracks, rips or tears.

Courtesy of FORD MOTOR COMPANY

2.
- 1.

  Install the ignition coil-on-plugs.
- 2.

  Install and tighten the ignition coil-on-plug bolts.
  Torque:

  Stage 1: 62 lb.in (7 Nm)

  Stage 2: 50°

Courtesy of FORD MOTOR COMPANY

3.

Connect the ignition coil-on-plug electrical connectors.

Courtesy of FORD MOTOR COMPANY

Right side

4.

Install the upper intake manifold. Refer to: UPPER INTAKE MANIFOLD .
