Ignition Coil-On-Plug: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

1.

Remove the engine appearance cover retainers and then remove the engine appearance cover.

Courtesy of FORD MOTOR COMPANY

2.
- 1.

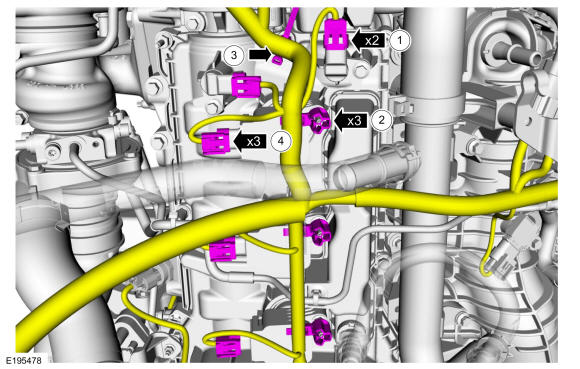

  Detach the LH ignition coil-on-plug harness retainers from the ignition coil-on-plug studbolts.
- 2.

  Slide the red locking tab (CPA) back away from the ignition coil-on-plug, depress the latch and then remove the connector from the ignition coil-on-plug.

Courtesy of FORD MOTOR COMPANY

3.
- 1.

  Disconnect the RH CMP sensor electrical connectors.
- 2.

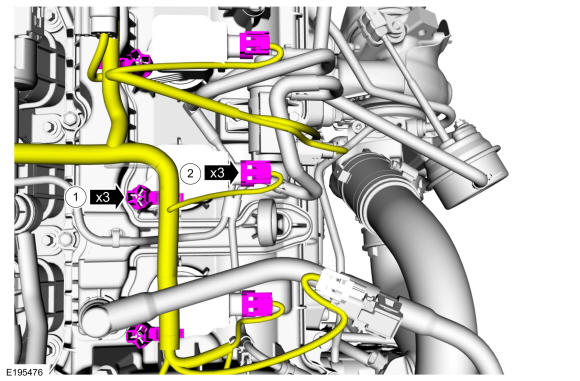

  Detach the RH ignition coil-on-plug harness retainers from the ignition coil-on-plug studbolts.
- 3.

  Detach the RH ignition coil-on-plug harness retainer from the valve cover studbolt.
- 4.

  Slide the red locking tab (CPA) back away from the ignition coil-on-plug, depress the latch and then remove the connector from the ignition coil-on-plug.

Courtesy of FORD MOTOR COMPANY

4.

NOTE: Use compressed air to remove any foreign material from the ignition coil-on-plugs and surrounding area before removal.

NOTE: When removing the ignition coil-on-plugs, a slight twisting motion will break the seal and ease removal.

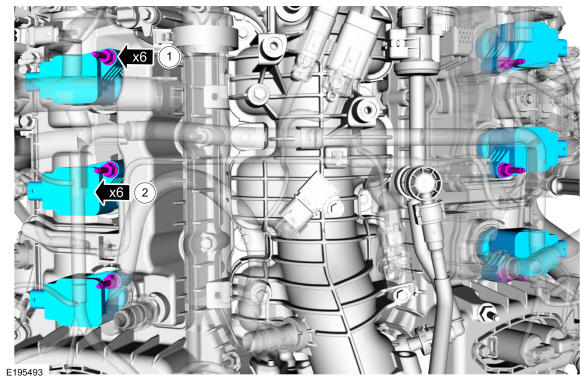

- 1.

  Remove the ignition coil-on-plug studbolts.
- 2.

  Remove the ignition coil-on-plugs.
