Ignition Coil-On-Plug: Installation

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

1.

Inspect and replace any ignition coil-on-plugs that have rubber boots with cracks, rips or tears.

Courtesy of FORD MOTOR COMPANY

2.
- 1.

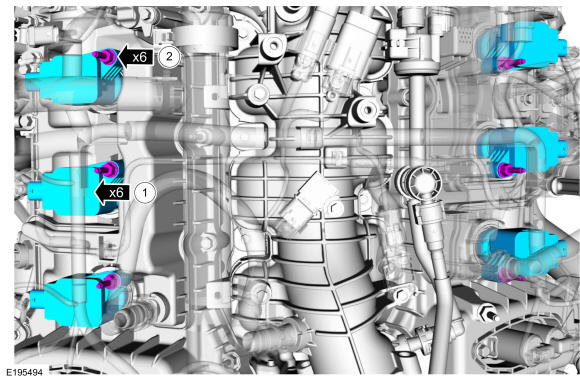

  Install the ignition coil-on-plugs.
- 2.

  Install and tighten the ignition coil-on-plug studbolts.
  Torque

  : 53 lb.in (6 Nm)

Courtesy of FORD MOTOR COMPANY

3.
- 1.

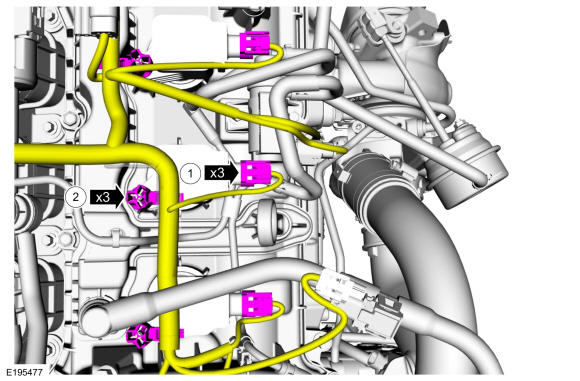

  Push the wire harness side connector onto the ignition coil-on-plug connector until locked. A clicking sound will be heard when fully seated. Slide the red locking tab (CPA) toward the ignition coil-on-plug until a second clicking sound is heard.
- 2.

  Attach the RH ignition coil-on-plug harness retainer to the valve cover studbolt.
- 3.

  Attach the RH ignition coil-on-plug harness retainers to the ignition coil-on-plug studbolts.
- 4.

  Connect the RH CMP sensor electrical connectors.

Courtesy of FORD MOTOR COMPANY

4.
- 1.

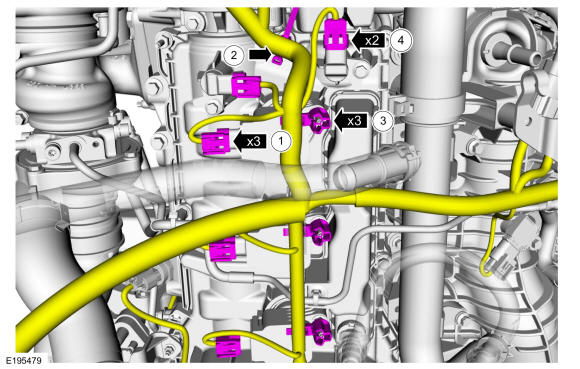

  Push the wire harness side connector onto the ignition coil-on-plug connector until locked. A clicking sound will be heard when fully seated. Slide the red locking tab (CPA) toward the ignition coil-on-plug until a second clicking sound is heard.
- 2.

  Attach the LH ignition coil-on-plug harness retainers to the ignition coil-on-plug studbolts.

Courtesy of FORD MOTOR COMPANY

5.

Install the engine appearance cover and then install and tighten the engine appearance cover retainers.
Torque

: 42 lb.in (4.8 Nm)
