RH A/C Tube and Secondary Cooling System Hoses
WARNING: This page is about a different car, the 2012 Ford Pickup, 2012 Ford F550 Super Duty, 2012 Ford F450 Super Duty, and 2012 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

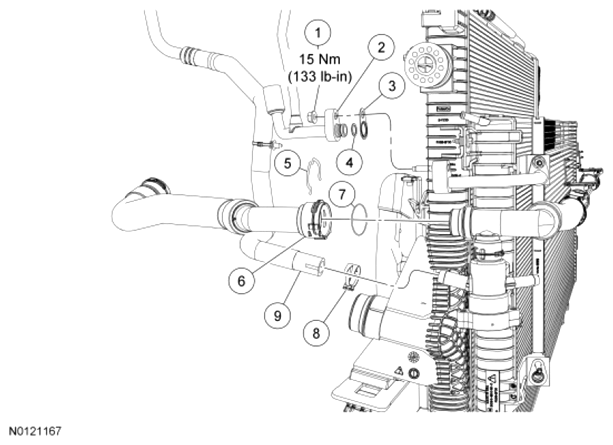

Fig 1: RH A/C Tube And Secondary Cooling System Hoses Replacement Components With Torque Specifications
| Item | Part Number | Description |
|---|---|---|
| 1 | W520413 | A/C tube fitting nut |
| 2 | 19C700 | A/C compressor-to-condenser tube fitting |
| 3 | 19A593 | A/C tube fitting gasket |
| 4 | 19E889 | A/C tube fitting O-ring seal |
| 5 | 8D037 | Secondary coolant pump-to-secondary radiator hose spring clip (part of 8A365) |
| 6 | 8A365 | Secondary coolant pump-to-secondary radiator hose |
| 7 | 8D058 | Secondary coolant pump-to-secondary radiator hose O-ring seal (part of 8A365) |
| 8 | W527362 | Secondary radiator-to-EGR cooler hose clamp |
| 9 | 9Y438 | Secondary radiator-to-EGR cooler hose |
