Cooling Fan and Clutch
WARNING: This page is about a different car, the 2012 Ford Pickup, 2012 Ford F550 Super Duty, 2012 Ford F450 Super Duty, and 2012 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.

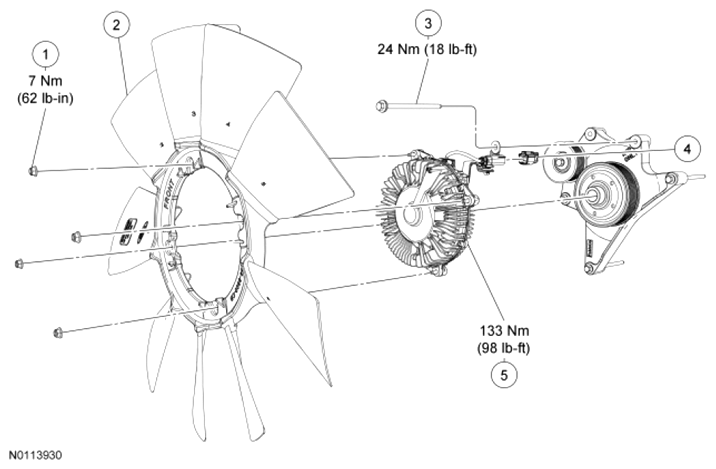

| Item |
Part Number |
Description |
| 1 |
W520101 |
Cooling fan-to-cooling fan clutch nut (4 required) |
| 2 |
8600 |
Cooling fan |
| 3 |
W701629 |
Cooling fan clutch electrical connector bracket bolt |
| 4 |
14A464 |
Cooling fan clutch electrical connector (part of 12B637) |
| 5 |
8A616 |
Cooling fan clutch |
