Secondary Degas Bottle-to-Secondary Coolant Pump Hose, Lower Radiator Hose and A/C Tubes
WARNING: This page is about a different car, the 2012 Ford Pickup, 2012 Ford F550 Super Duty, 2012 Ford F450 Super Duty, and 2012 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

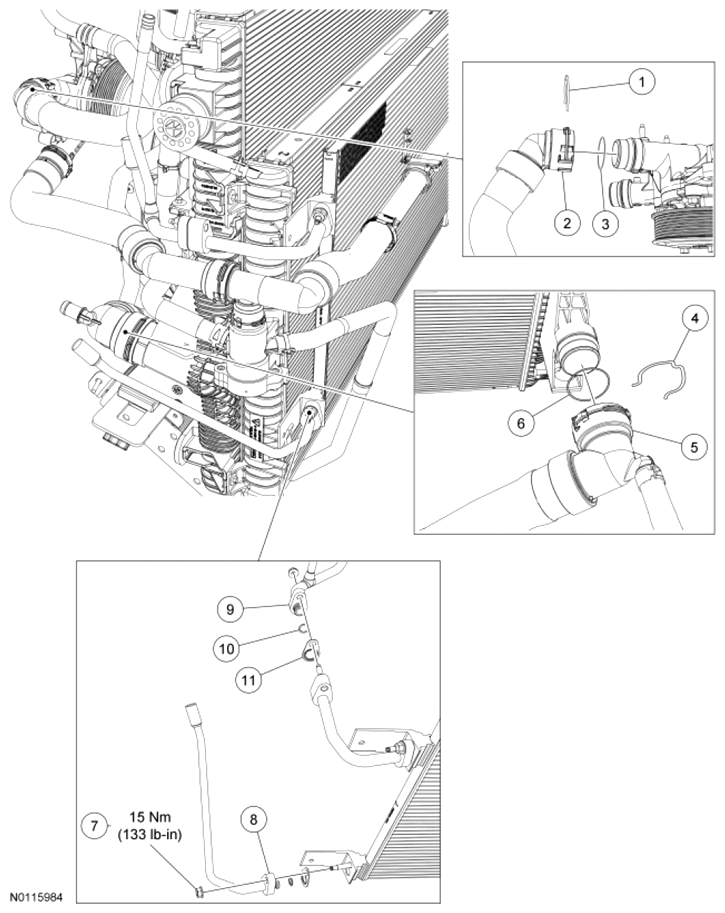

Fig 1: Secondary Degas Bottle-To-Secondary Coolant Pump Hose, Lower Radiator Hose And A/C Tubes Replacement Components With Torque Specifications
| Item | Part Number | Description |
|---|---|---|
| 1 | 8D037 | Secondary degas bottle-to-secondary coolant pump hose spring clip (part of 8C350) |
| 2 | 8C350 | Secondary degas bottle-to-secondary coolant pump hose |
| 3 | 8D058 | Secondary degas bottle-to-secondary coolant pump hose O-ring seal (part of 8C350) |
| 4 | 8D037 | Lower radiator hose spring clip (part of 8286) |
| 5 | 8286 | Lower radiator hose |
| 6 | 8D058 | Lower radiator hose O-ring seal (part of 8286) |
| 7 | W520413 | A/C tube fitting nut (2 required) |
| 8 | 19H651 | A/C condenser-to-evaporator tube fitting |
| 9 | 19C700 | A/C compressor-to-condenser tube fitting |
| 10 | 19E889 | A/C tube fitting O-ring seal (2 required) |
| 11 | 19A593 | A/C tube fitting gasket (2 required) |
