Cooling Module Assembly

WARNING: This page is about a different car, the 2012 Ford Pickup, 2012 Ford F550 Super Duty, 2012 Ford F450 Super Duty, and 2012 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

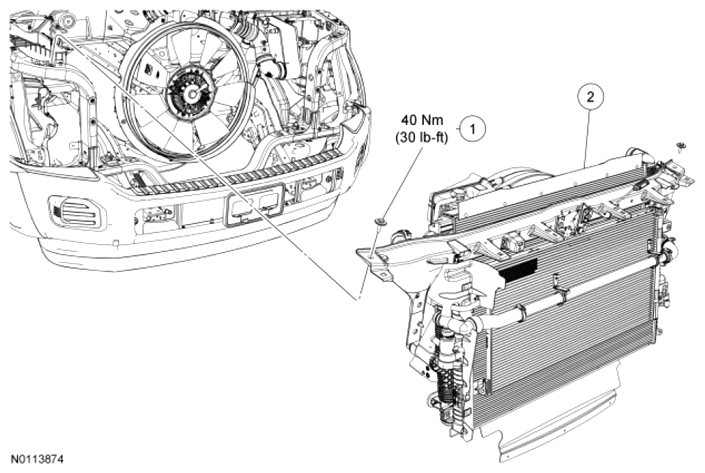

Fig 1: Cooling Module Assembly Replacement Components With Torque Specifications
G07481650Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W712360 Radiator bolster bolt (2 required)
2 - Cooling module assembly
