Cooling Fan Stator

WARNING: This page is about a different car, the 2012 Ford Pickup, 2012 Ford F550 Super Duty, 2012 Ford F450 Super Duty, and 2012 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

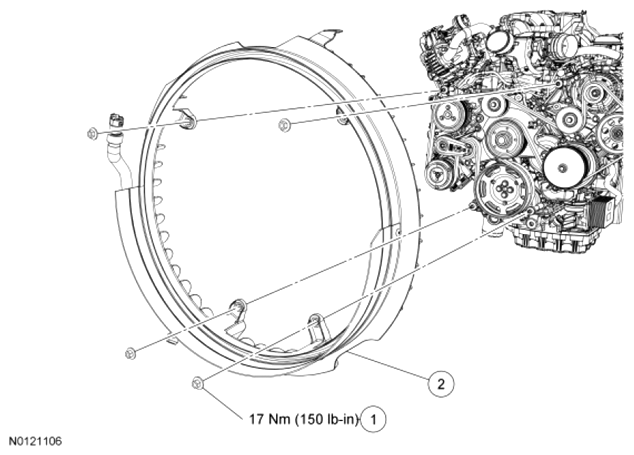

Fig 1: Exploded View Of Cooling Fan Stator Components With Torque Specifications
G07481696Courtesy of FORD MOTOR CO.
Item Part Number Description
1 N621940 Cooling fan stator nut (4 required)
2 8B614 Cooling fan stator
