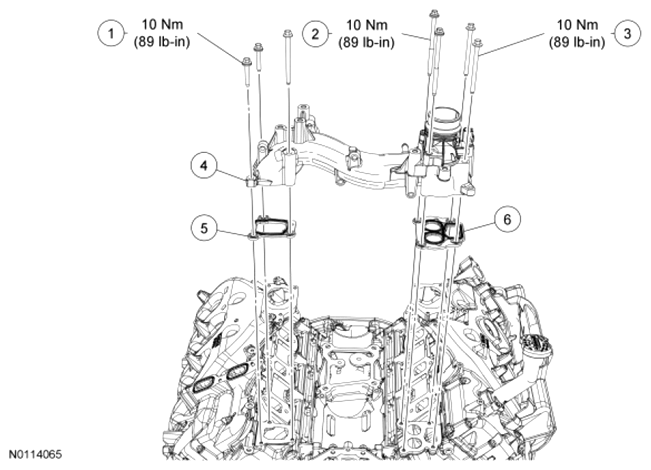

Coolant Crossover Manifold
WARNING: This page is about a different car, the 2012 Ford Pickup, 2012 Ford F550 Super Duty, 2012 Ford F450 Super Duty, and 2012 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | W503280 | Coolant crossover manifold bolt (2 required) |
| 2 | W707083 | Coolant crossover manifold bolt (2 required) |
| 3 | W701617 | Coolant crossover manifold bolt (3 required) |
| 4 | 8C369 | Coolant crossover manifold |
| 5 | 8C387 | RH coolant crossover manifold gasket |
| 6 | 8C387 | LH coolant crossover manifold gasket |
