3.5L EcoBoost

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

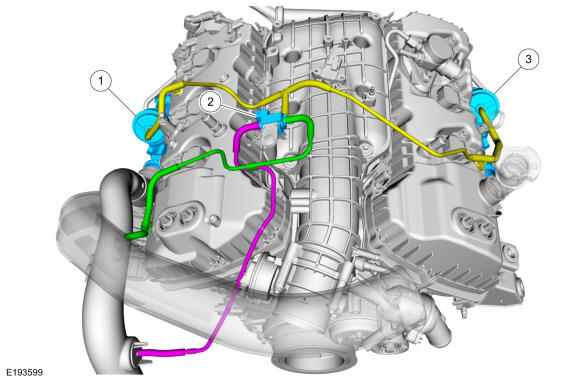

GFD41008Courtesy of FORD MOTOR COMPANY
Item Description
1 Turbocharger - right
2 Wastegate control valve solenoid
3 Turbocharger - left
