Turbocharger Oil Supply Tube RH: Installation
WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
- 1.

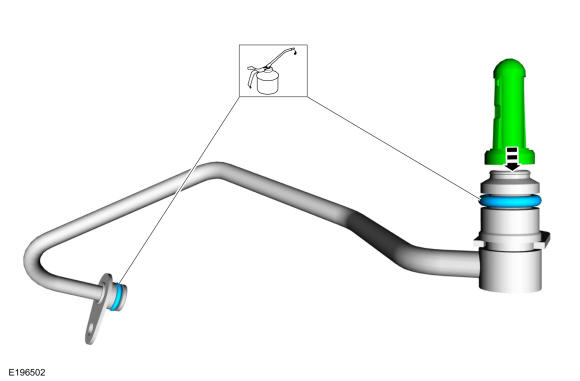

Install the new TC oil supply tube O-ring seals and the new TC oil supply tube oil filter. Lubricate the new TC oil supply tube O-ring seals with clean engine oil.Material
: Motorcraft® SAE 5W-30 Premium Synthetic Blend Motor Oil / XO-5W30-QSP (WSS-M2C946-A)
- 2.
Install the TC oil supply tube, then install and tighten the TC oil supply tube bolts.Torque
: 89 lb.in (10 Nm)
- 3.
Install the A/C compressor, install and tighten the A/C compressor mounting bolts.Torque
: 18 lb.ft (25 Nm)
- 4.
Install the Accessory Drive Belt. REFER to: ACCESSORY DRIVE BELT .
- 5.
Install the RHCAC intake pipe. REFER to: CHARGE AIR COOLER (CAC) INTAKE PIPE .
- 6.
Install the Air Cleaner Outlet Pipe RH. REFER to: AIR CLEANER OUTLET PIPE RH .
- 7.
Install the RHF fender splash shield. REFER to: Fender Splash Shield .
- 8.
If equipped, install the skid plate or splash shield, then install and tighten the bolts.Torque
: 30 lb.ft (40 Nm)
- 9.
If equipped, install the transmission housing cover, then install and tighten the retainers.Torque
: 71 lb.in (8 Nm)
- 10.
Install the engine appearance cover and then install and tighten the engine appearance cover retainers.Torque
: 42 lb.in (4.8 Nm)
