Turbocharger Oil Supply Tube LH: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Whenever turbocharger air intake system components are removed, always cover open ports to protect from debris. It is important that no foreign material enter the system. The turbocharger compressor vanes are susceptible to damage from even small particles. All components should be inspected and cleaned, if necessary, prior to installation or reassembly.

1.

With the vehicle in NEUTRAL, position it on a hoist. REFER to: Jacking and Lifting - Overview .

2.

Remove the engine appearance cover retainers and then remove the engine appearance cover.

Courtesy of FORD MOTOR COMPANY

3.

Drain the cooling system. REFER to: COOLING SYSTEM DRAINING AND VACUUM FILLING .

4.

Remove the LHF fender splash shield. REFER to: Fender Splash Shield .

5.

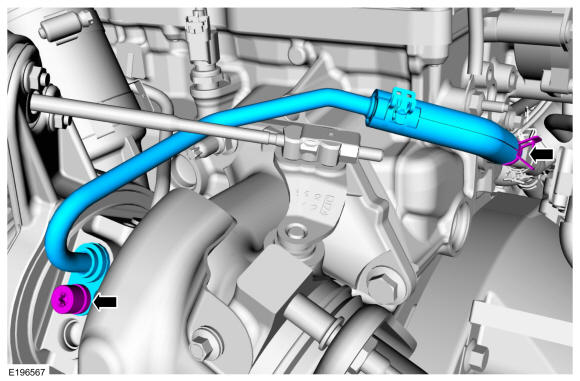

Remove the TC coolant return tube bolt, then disconnect and remove the TC coolant return tube.
Use the General Equipment: Hose Clamp Remover/Installer
