Turbocharger Oil Supply Tube LH: Installation
WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
- 1.
Install the new TC oil supply tube O-ring seals and the new TC oil supply tube oil filter. Lubricate the new TC oil supply tube O-ring seals with clean engine oil.Material
: Motorcraft® SAE 5W-30 Premium Synthetic Blend Motor Oil / XO-5W30-QSP (WSS-M2C946-A)
- 2.
Install the TC oil supply tube, then loosely install the oil supply tube bolt.Torque
: 89 lb.in (10 Nm)
- 3.
Connect the TC oil supply tube to the TC, then install and tighten the TC oil supply tube bolt.Torque
: 89 lb.in (10 Nm)

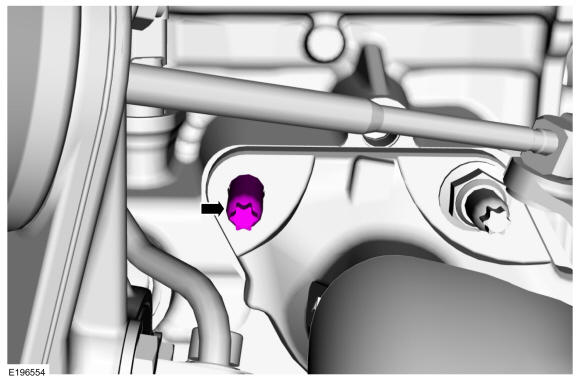

- 5.NOTE: Apply high temperature nickel anti-seize lubricant to the TC exhaust flange studbolt threads.
Install and then tighten the TC mounting stud.
Torque
: 102 lb.in (11.5 Nm)
- 6.

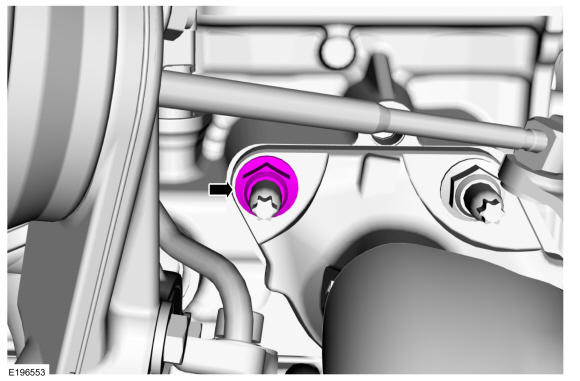

Install and tighten the upper left TC nut in the following 2 stages.Torque:
Stage 1: 44 lb.ft (60 Nm)
Stage 2: 44 lb.ft (60 Nm)
- 7.
Install a new TC coolant return tube O-ring seal. Lubricate the new O-ring seal with clean engine coolant.Material
: Motorcraft® Orange Concentrated Antifreeze/Coolant / VC-3-B (WSS-M97B44-D)
- 8.
install and Connect the TC coolant return tube, then install and tighten the TC coolant return tube bolt.Use the General Equipment: Hose Clamp Remover/Installer
Torque
: 89 lb.in (10 Nm)
- 9.
Install the LHF fender splash shield. REFER to: Fender Splash Shield .
- 10.
Install the engine appearance cover and then install and tighten the engine appearance cover retainers.Torque
: 42 lb.in (4.8 Nm)
- 11.
Fill the cooling system. REFER to: COOLING SYSTEM DRAINING AND VACUUM FILLING .
