Turbocharger Coolant Supply Tube RH: Installation

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

1.

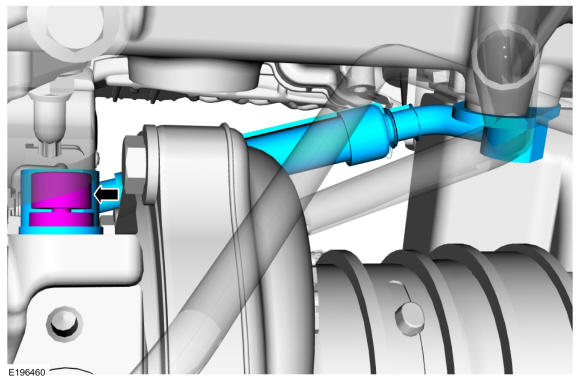

Install the new TC coolant supply tube O-ring seals. Lubricate the new O-ring seals with clean engine coolant.
Material

: Motorcraft® Orange Concentrated Antifreeze/Coolant / VC-3-B (WSS-M97B44-D)

Courtesy of FORD MOTOR COMPANY

2.

Install the TC coolant supply tube, then install and tighten the bolt.
Torque

: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

3.

Install and tighten the TC coolant supply tube bolt.
Torque

: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

4.

If equipped, install the skid plate or splash shield, then install and tighten the bolts.
Torque

: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY

5.

If equipped, install the transmission housing cover, then install and tighten the retainers.
Torque

: 71 lb.in (8 Nm)

Courtesy of FORD MOTOR COMPANY

6.

Install the RHF fender splash shield. REFER to: Fender Splash Shield .

7.

Fill the cooling system. REFER to: COOLING SYSTEM DRAINING AND VACUUM FILLING .
