Throttle Body: Removal
WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
- 2.

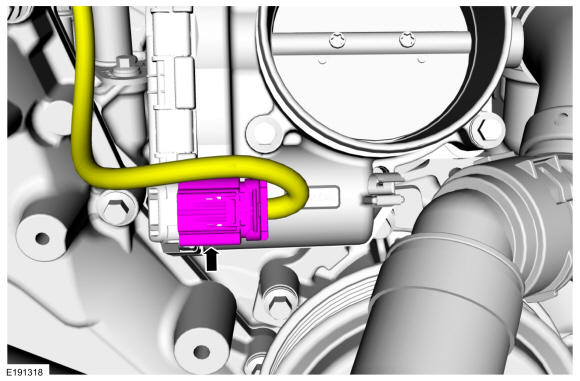

Disconnect the Throttle Body (TB) electrical connector.
 Courtesy of FORD MOTOR COMPANY
|
- 3.

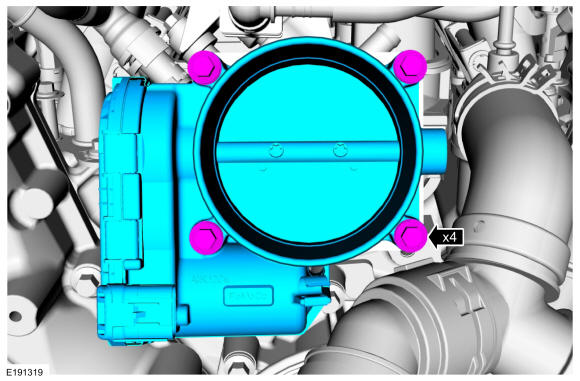

Remove the Throttle Body (TB) retaining bolts and then remove the Throttle Body (TB).
 Courtesy of FORD MOTOR COMPANY
|
- 4.

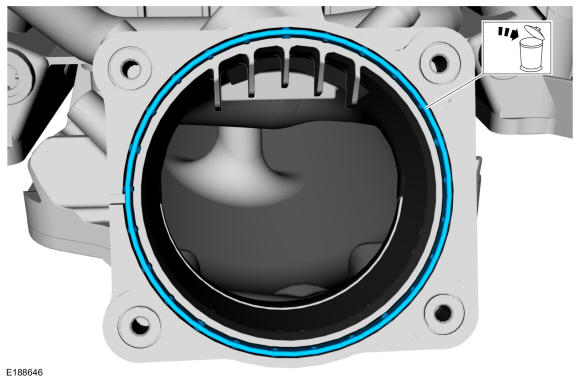

Remove and discard the Throttle Body (TB) gasket.
 Courtesy of FORD MOTOR COMPANY
|
