Throttle Body: Installation
WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

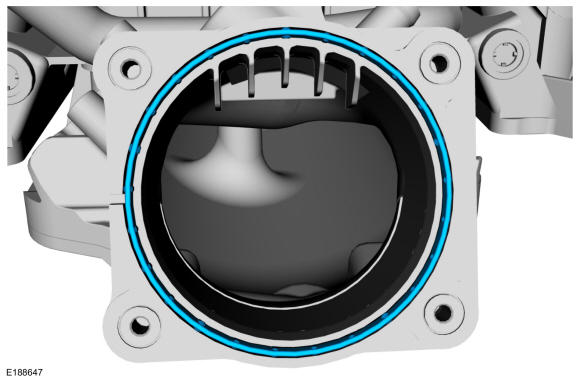

Make sure that the mating faces are clean and free of foreign material.
- 2.
Install the Throttle Body (TB), then install and tighten the Throttle Body (TB) retaining bolts.Torque:
Stage 1: 62 lb.in (7 Nm)
Stage 2: 60°
- 4.
Install the air cleaner outlet pipe. Refer to: AIR CLEANER OUTLET PIPE .
