Fuel Rail: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

1.

Release the fuel system pressure. Refer to: FUEL SYSTEM PRESSURE RELEASE .

2.

Disconnect the battery. Refer to: Battery Disconnect and Connect .

3.

Disconnect the fuel supply tube quick release coupling. Refer to: QUICK RELEASE COUPLING .

Courtesy of FORD MOTOR COMPANY

4.

Remove the LH and the RH fuel rail insulators.

Courtesy of FORD MOTOR COMPANY

5.

Disconnect the fuel injector electrical connectors.

Courtesy of FORD MOTOR COMPANY

6.

Remove the fuel rail retaining bolts and then remove the fuel rail.

Courtesy of FORD MOTOR COMPANY

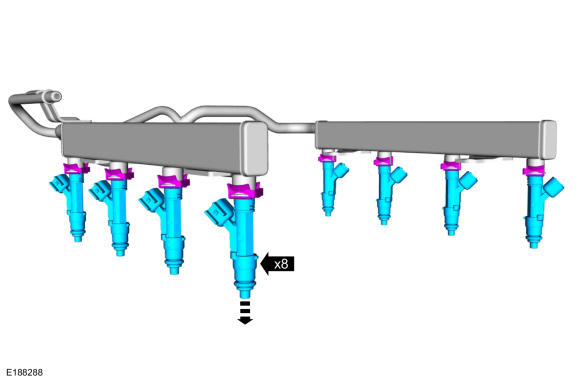

7.

Remove the fuel injectors from the fuel rail.

Courtesy of FORD MOTOR COMPANY

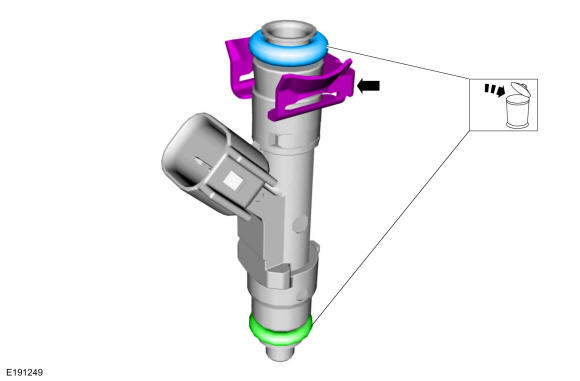

8.

Remove and discard all of the fuel injector O-ring seals. Remove the fuel injector retaining clips.
