Throttle Body: Installation

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Make sure that the mating faces are clean and free of foreign material.

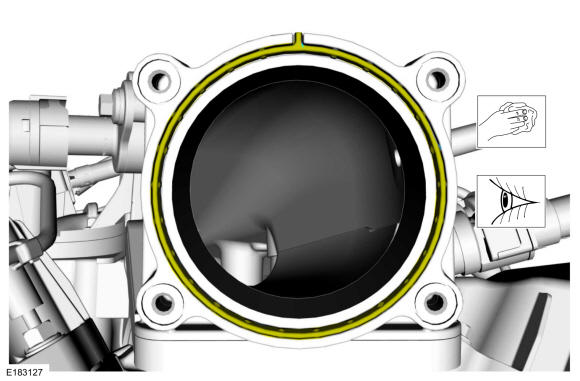

1.

Inspect the Throttle Body (TB) gasket, clean and replace the Throttle Body (TB) gasket as needed.

Courtesy of FORD MOTOR COMPANY

2.

Install the Throttle Body (TB), then install and tighten the Throttle Body (TB) bolts in the following 2 stages.
Torque:

Stage 1: 89 lb.in (10 Nm)

Stage 2: 90°

Courtesy of FORD MOTOR COMPANY

3.

NOTE: When connecting the Throttle Body (TB) electrical connector engage the red connector locking tab after fully installing the Throttle Body (TB) electrical connector. The red tab will not slide forward unless the Throttle Body (TB) electrical connector is fully installed.

Connect the Throttle Body (TB) electrical connector and then attach the wire harness retainer to the Throttle Body (TB).

Courtesy of FORD MOTOR COMPANY

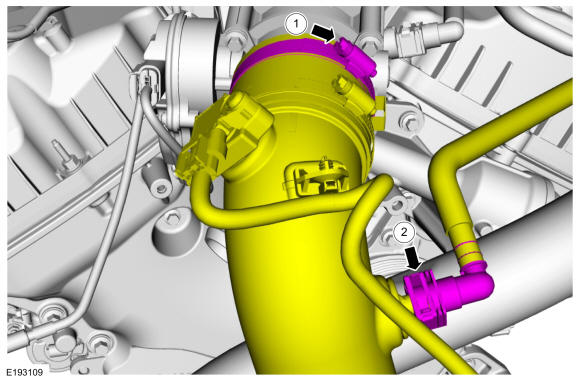

4.
- 1.

  Install the Throttle Body (TB) inlet pipe and then tighten the Throttle Body (TB) inlet pipe clamp.
  Torque

  : 48 lb.in (5.4 Nm)
- 2.

  Connect the quick release coupling. Refer to: QUICK RELEASE COUPLING .

Courtesy of FORD MOTOR COMPANY
