Fuel Rail: Removal
WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
- 1.
Remove the oil filler cap and then remove the engine appearance cover. Install the oil filler cap.
- 2.NOTE: When removing or installing the high-pressure fuel pump noise insulator, spreading the openings will reduce the risk of damage.
Remove the high-pressure fuel pump noise insulator.
- 3.
Release the fuel system pressure. Refer to: FUEL SYSTEM PRESSURE RELEASE .
- 4.
Disconnect the battery. Refer to: Battery Disconnect and Connect .
- 5.
Remove the intake manifold. Refer to: INTAKE MANIFOLD .
- 6.
Drain the cooling system. Refer to: COOLING SYSTEM DRAINING AND VACUUM FILLING .

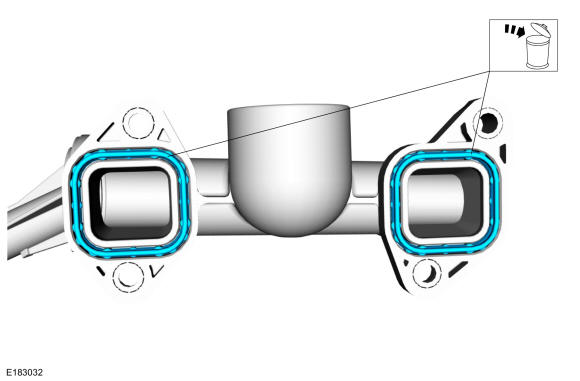

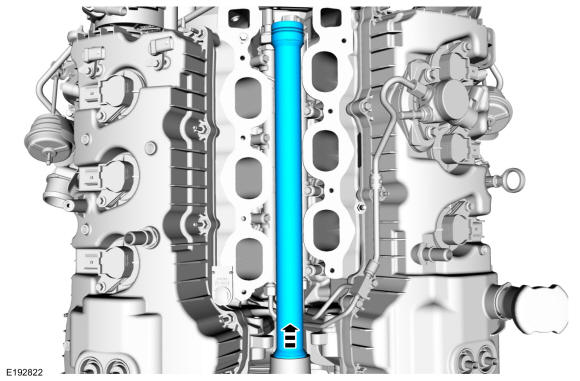

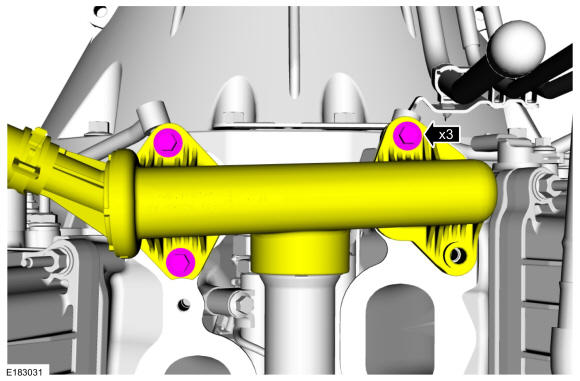

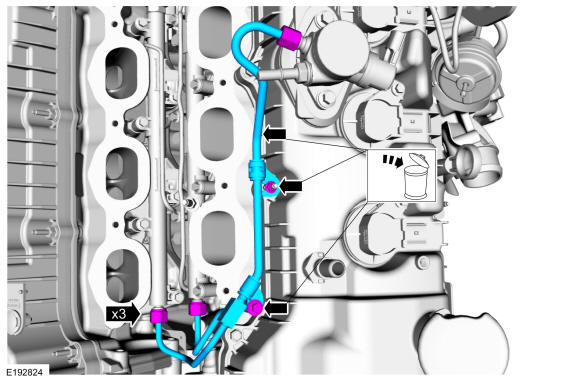

- 11.NOTE: To release the fuel pressure in the high-pressure fuel tube, wrap the high-pressure fuel pump flare nut with a shop towel to absorb any residual fuel pressure during the loosening of high-pressure fuel pump flare nut.
Remove the high-pressure fuel tube bracket nut, the high-pressure fuel tube bracket bolt and discard. Disconnect the high-pressure fuel tube flare nuts, remove the high-pressure fuel tube and discard.
- 13.

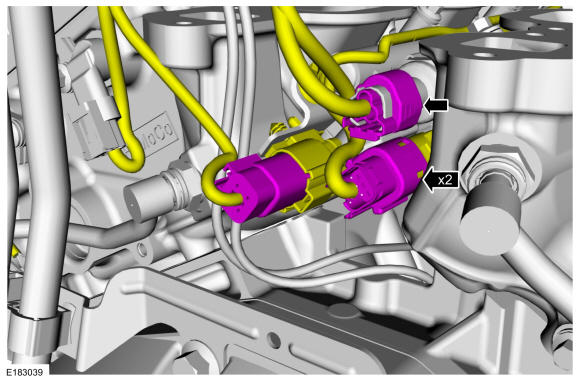

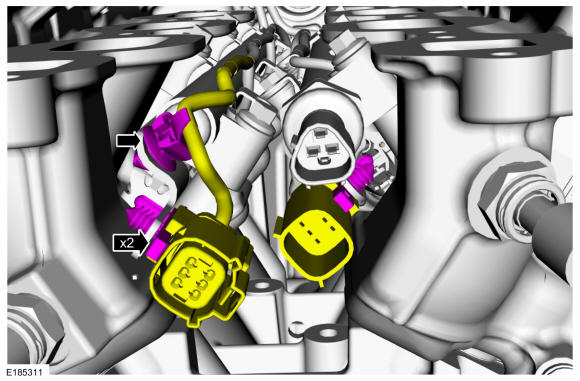

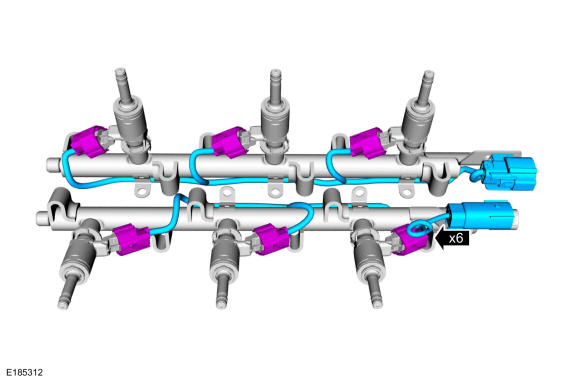

Disconnect the fuel injector wire harness connectors and the fuel rail pressure sensor wire connector.
- 14.

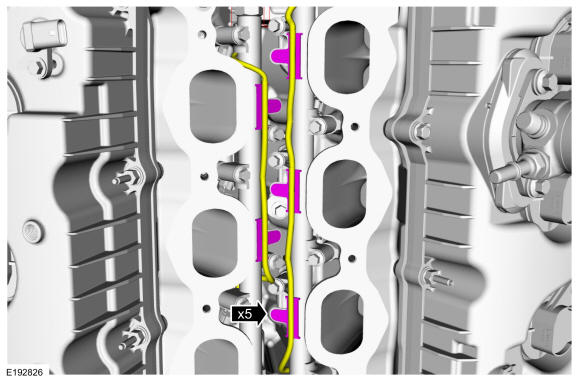

Detach the fuel injector wire harness electrical connector retainers and the fuel injector wire harness retainer from the fuel rail.
- 15.NOTE: Pull out the fuel rails in the direction of the fuel injector axis or damage may occur to the fuel injectors.NOTE: Use compressed air and remove any dirt or foreign material from the cylinder head, block and general surrounding area of the fuel rail and injectors.NOTE: When removing the fuel rails, the fuel injectors may remain in the cylinder heads and require the use of a Fuel Injector Remover tool to extract. Wiggling the injector by hand to break it loose may allow the injector to be removed by hand.NOTE: Should any of the fuel injectors remain in the head, then the fuel injector electrical connectors will need to be disconnected as the fuel rail is being removed.

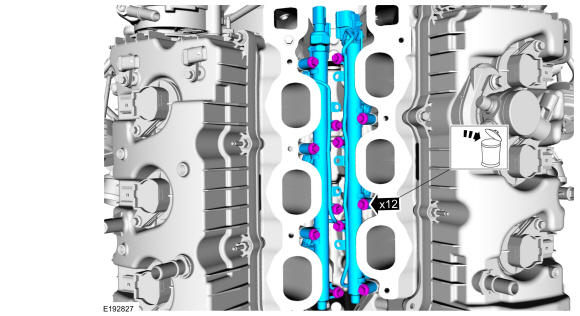

Remove the fuel rail bolts and discard, then remove the fuel rails.

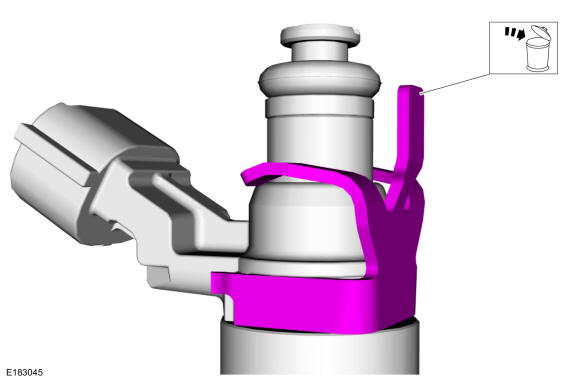

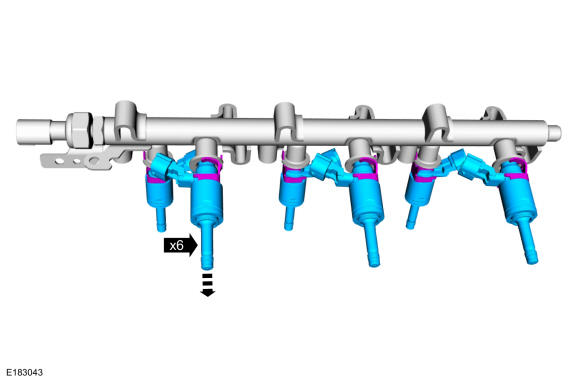

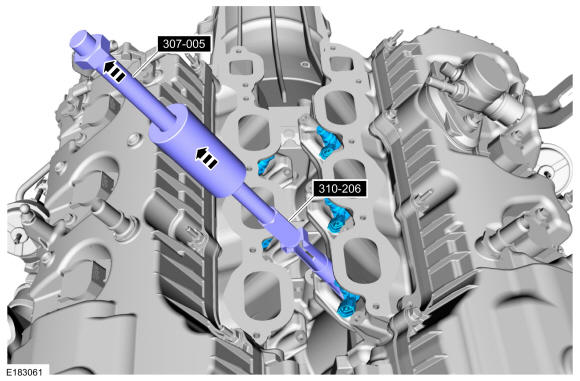

- 19.NOTE: Use minimal force to remove the fuel injectors that remained in the cylinder head with the Fuel Injector Remover tool or damage to the fuel injector assembly may occur. Wiggling the injector by hand to break it loose may allow the injector to be removed by hand.
Using the special tools, remove any of the fuel injectors that remained in the cylinder head.
Use Special Service Tool: 307-005 (T59L-100-B) Slide Hammer, 310-206 Remover, Fuel Injector.
- 20.NOTE: Make sure to thoroughly clean any residual fuel or foreign material from the cylinder head, block and the general surrounding area of the fuel rails and injectors.NOTE: Do not use compressed air to clean the tip of the fuel injector.NOTE: Do not use a brush to clean the tip of the fuel injector.

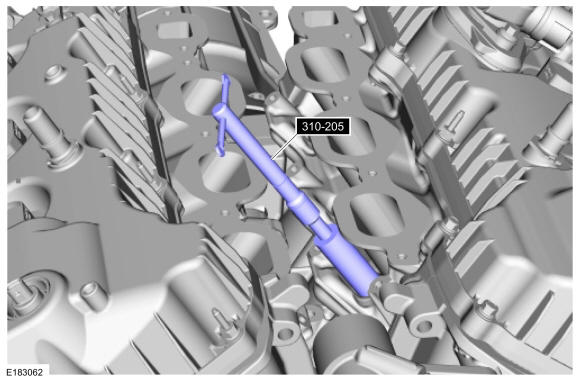

Using the special tool, clean the cylinder head fuel injector bores.
Use Special Service Tool: 310-205 Fuel Injector Brush.
