Throttle Body: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

1.

Remove the engine appearance cover retainers and then remove the engine appearance cover.

Courtesy of FORD MOTOR COMPANY

2.

Remove the CAC Outlet Pipe. Refer to: CHARGE AIR COOLER (CAC) OUTLET PIPE .

3.

NOTE: When disconnecting the Throttle Body (TB) electrical connector disengage the red locking tab on the Throttle Body (TB) electrical connector by sliding it to the rear of the Throttle Body (TB) electrical connector, away from the Throttle Body (TB). Squeeze the Throttle Body (TB) electrical connector while removing.

Disconnect the Throttle Body (TB) electrical connector.

Courtesy of FORD MOTOR COMPANY

4.

Remove the Throttle Body (TB) bolts and then remove the Throttle Body (TB).

Courtesy of FORD MOTOR COMPANY

5.

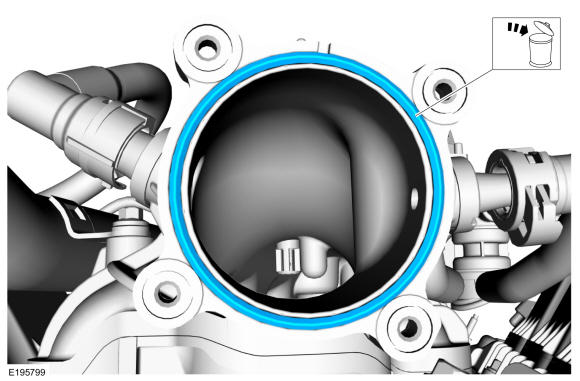

Remove and discard the Throttle Body (TB) gasket.
