Throttle Body: Installation

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Make sure that the mating faces are clean and free of foreign material.

1.

NOTE: Make sure that a new Throttle Body (TB) gasket is installed.

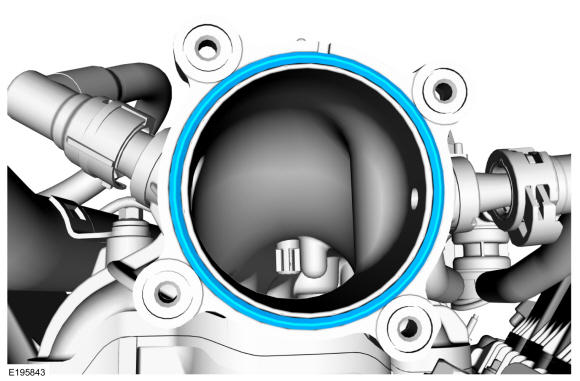

Install a new Throttle Body (TB) gasket.

Courtesy of FORD MOTOR COMPANY

2.

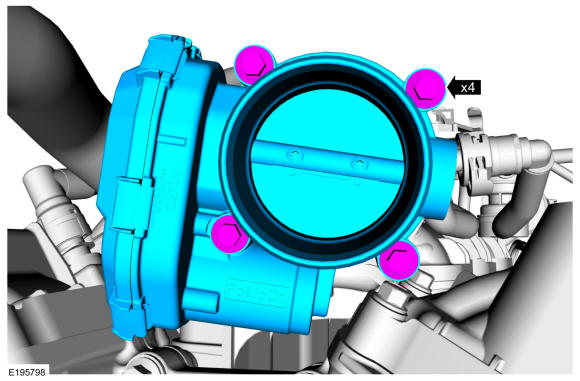

Install the Throttle Body (TB), then install and tighten the Throttle Body (TB) bolts.
Torque

: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

3.

NOTE: When connecting the Throttle Body (TB) electrical connector engage the red connector locking tab after fully installing the Throttle Body (TB) electrical connector. The red tab will not slide forward unless the Throttle Body (TB) electrical connector is fully installed.

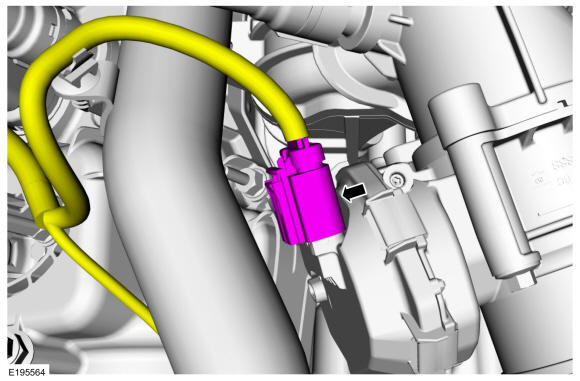

Connect the Throttle Body (TB) electrical connector.

Courtesy of FORD MOTOR COMPANY

4.

Install the CAC Outlet Pipe. Refer to: CHARGE AIR COOLER (CAC) OUTLET PIPE .

5.

Install the engine appearance cover and then install and tighten the engine appearance cover retainers.
Torque

: 42 lb.in (4.8 Nm)
