Fuel Charging and Controls - Component Location
WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

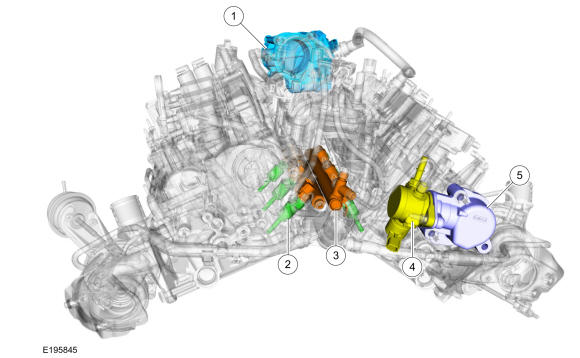

2.7L EcoBoost
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
Throttle Body (TB) |
| 2 |
Fuel rail |
| 3 |
Fuel injector |
| 4 |
High-pressure fuel pump |
| 5 |
High-pressure fuel pump drive unit |
FPDM
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
FPDM. (The FPDM is located on top of a rear frame crossmember). |
