Transmission Fluid Heater Coolant Control Valve: Removal
WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.

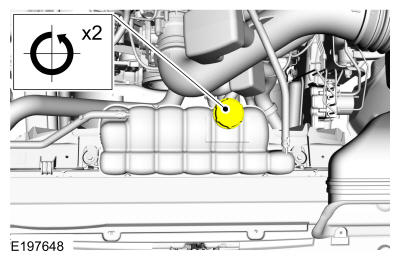

- 1.WARNING: When releasing the cooling system pressure, cover the coolant expansion tank cap with a thick cloth.
Loosen the pressure relief cap.
- 2.
- 1.

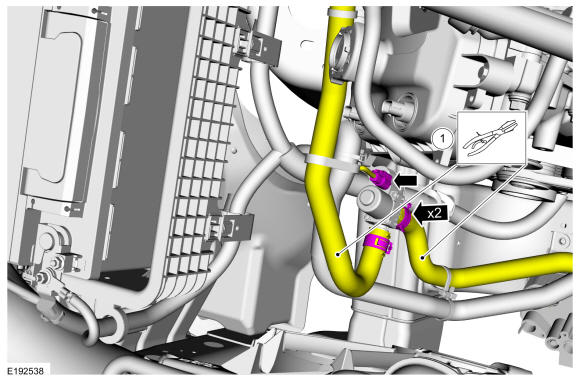

Using a general tool, clamp both coolant hoses.Use the General Equipment: Locking Pliers
- Release the hose clamps and disconnect the coolant hoses.
Use the General Equipment: Hose Clamp Remover/Installer
- Disconnect the electrical connector.
- 1.
- 3.

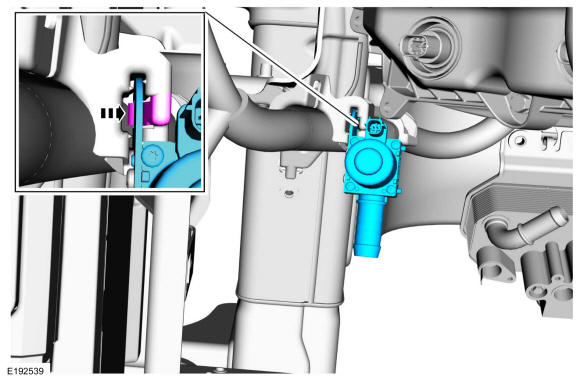

Using a suitable tool, release the retaining clip and remove the transmission fluid heater coolant control valve.
