Coolant Pump: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

  1. 1.

    Drain the cooling system. REFER to: Cooling System Draining and Vacuum Filling .

  1. 2.

    Remove the air cleaner outlet pipe. REFER to: AIR CLEANER OUTLET PIPE .

  1. 3.

    Remove the bolts and position the degas bottle aside.
GFD40836Courtesy of FORD MOTOR COMPANY

  1. 4.

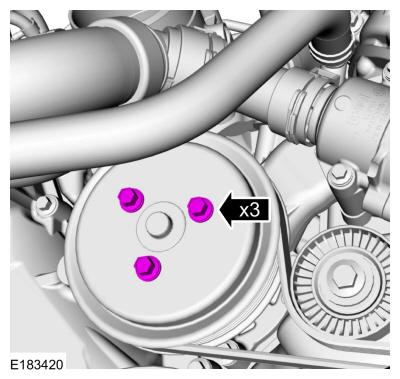

    Loosen the coolant pump pulley bolts.
GFD40418Courtesy of FORD MOTOR COMPANY

  1. 5.

    Remove the accessory drive belt. REFER to: ACCESSORY DRIVE BELT .

  1. 6.

    NOTE: Cover the A/C compressor belt to prevent coolant contamination of the belt.

    Completely cover the A/C compressor belt with waterproof plastic.

  1. 7.

    Remove the thermostat housing. REFER to: Thermostat Housing .

  1. 8.

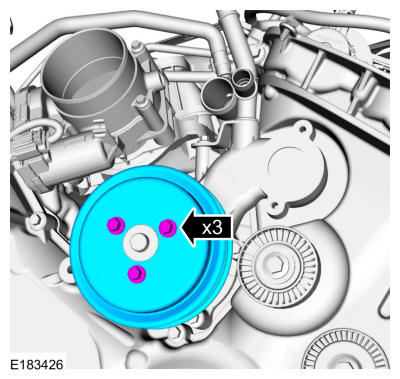

    Remove the bolts and the coolant pump pulley.
GFD40423Courtesy of FORD MOTOR COMPANY

  1. 9.

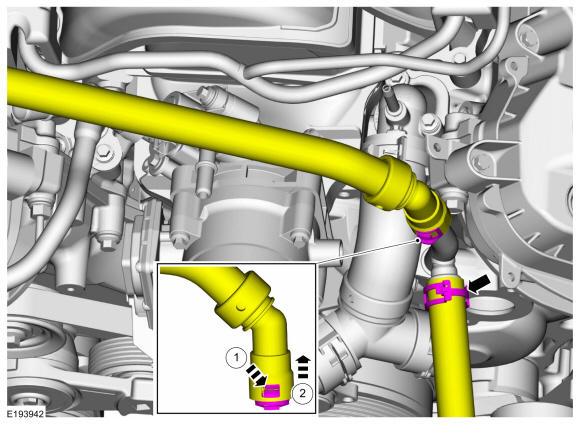

    • Disconnect the heater outlet hose from the heater outlet tube.
    • Release the clamp and disconnect the lower degas bottle hose from the heater outlet tube.
GFD40837Courtesy of FORD MOTOR COMPANY

  1. 10.

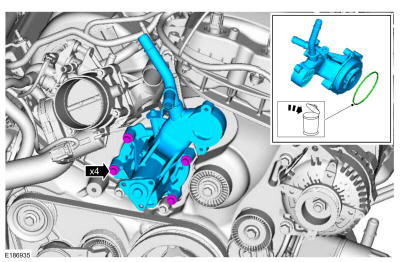

    • Remove the bolts and the coolant pump.
    • Remove and discard the O-ring seal.
GFD40838Courtesy of FORD MOTOR COMPANY

  1. 11.

    NOTE: This step is only necessary when installing a new component.
    • Remove the bolt and the heater outlet tube.
    • Remove and discard the O-ring seal.
GFD40839Courtesy of FORD MOTOR COMPANY
