Thermostat Housing: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

1.

Drain the cooling system. REFER to: Cooling System Draining and Vacuum Filling .

2.

Remove the air cleaner outlet pipe. REFER to: AIR CLEANER OUTLET PIPE .

3.

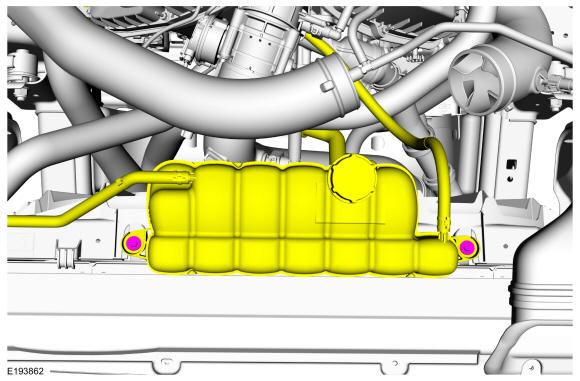

Remove the bolts and position aside the degas bottle.
Torque

: 62 lb.in (7 Nm)

GFD40796

Courtesy of FORD MOTOR COMPANY

4.

NOTE: Cover the accessory drive belts to prevent coolant contamination of the belts.

Completely cover the accessory drive belts with waterproof plastic.

5.

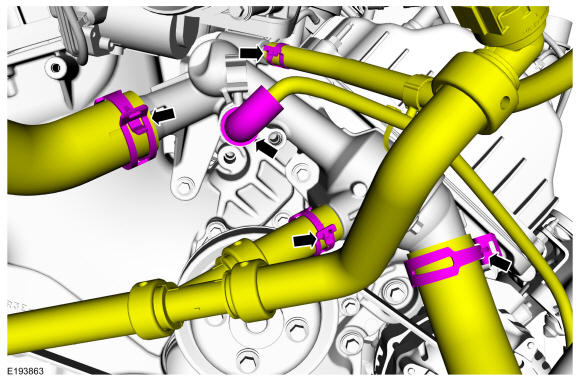

- Disconnect the coolant hoses.
  Use the General Equipment: Hose Clamp Remover/Installer
- If equipped, disconnect the block heater electrical connector and detach the wiring harness retainer.

GFD40829

Courtesy of FORD MOTOR COMPANY

6.

NOTE: Do not allow the coolant inlet pipe to come out of the coolant crossover manifold assembly or the coolant inlet pipe O-ring seal may be damaged.

NOTE: Use the ear on the top of the coolant inlet pipe to prevent the coolant pipe from coming out of the coolant crossover manifold assembly.

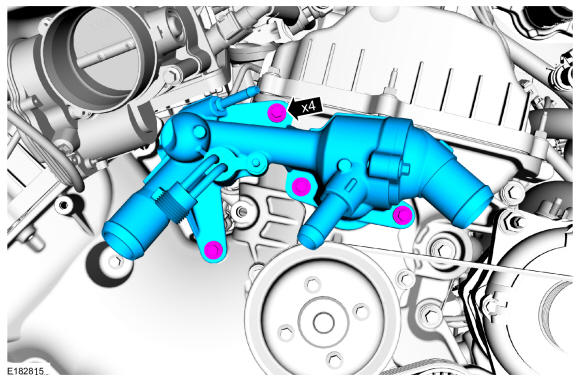

Remove the bolts and the thermostat housing.

Torque:

Stage 1: 71 lb.in (8 Nm)

Stage 2: 45°

GFD40830

Courtesy of FORD MOTOR COMPANY

7.

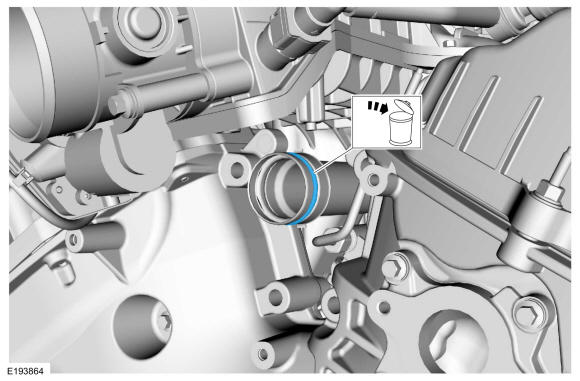

Remove and discard the O-ring seal.

GFD40806

Courtesy of FORD MOTOR COMPANY

8.

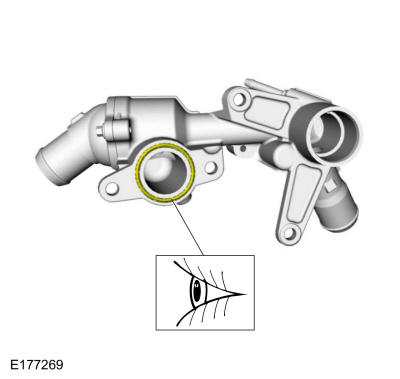

Inspect the O-ring seal and replace if necessary.

GFD39908

Courtesy of FORD MOTOR COMPANY
