Cooling Fan Motor and Shroud: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

1.

With the vehicle in NEUTRAL, position it on a hoist. REFER to: Jacking and Lifting - Overview .

2.

Remove the air cleaner outlet pipe. REFER to: AIR CLEANER OUTLET PIPE .

3.

Remove the air cleaner. REFER to: AIR CLEANER .

4.

Disconnect the electrical connector and detach the wiring harness retainer. Disconnect the quick connect coupling. REFER to: QUICK RELEASE COUPLING .

Courtesy of FORD MOTOR COMPANY

5.

Loosen the clamps and remove the CAC-to-TB (throttle body) pipe.

Courtesy of FORD MOTOR COMPANY

6.

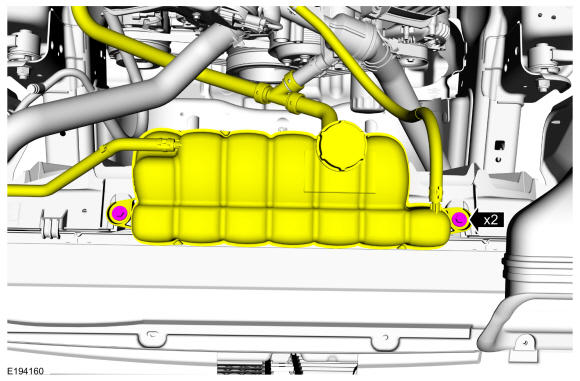

Remove the bolts and position the degas bottle aside.
Torque

: 62 lb.in (7 Nm)

Courtesy of FORD MOTOR COMPANY

7.

Disconnect the cooling fan electrical connectors.

Courtesy of FORD MOTOR COMPANY

8.

Detach the pin-type retainers and harness retainer that secure the wiring harness to the cooling fan shroud.

Courtesy of FORD MOTOR COMPANY

9.

Position the wiring harness aside.

Courtesy of FORD MOTOR COMPANY

10.

Remove the retainers that secure the cooling fan motor and shroud.
Torque

: 62 lb.in (7 Nm)

Courtesy of FORD MOTOR COMPANY

11.

Lift the cooling fan motor and shroud upward and place wooden block to support it. Detach the pin-type retainers that secure the lower radiator shield to the cooling fan shroud.

Courtesy of FORD MOTOR COMPANY

12.

Remove the cooling fan motor and shroud.

Courtesy of FORD MOTOR COMPANY
