Coolant Pump: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

  1. 1.

    Remove the thermostat housing. REFER to: Thermostat Housing .

  1. 2.

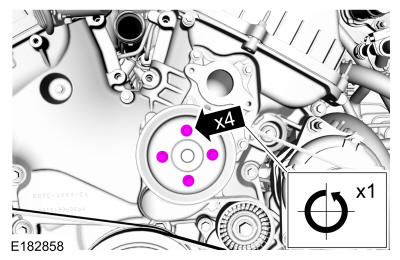

    Loosen the coolant pump pulley bolts.
GFD40822Courtesy of FORD MOTOR COMPANY

  1. 3.

    Remove the accessory drive belt. REFER to: ACCESSORY DRIVE BELT .

  1. 4.

    NOTE: Cover the A/C compressor belt to prevent coolant contamination of the belt.

    Completely cover the A/C compressor belt with waterproof plastic.

  1. 5.

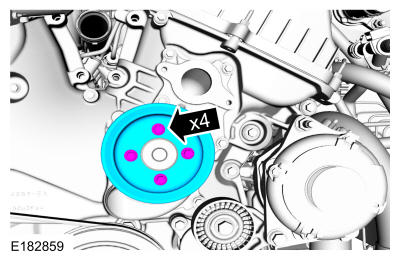

    Remove the bolts and the coolant pump pulley.
GFD40823Courtesy of FORD MOTOR COMPANY

  1. 6.

    Remove the bolts and the coolant pump.
GFD40304Courtesy of FORD MOTOR COMPANY

  1. 7.

    Remove and discard the coolant pump gasket and O-ring seal.
GFD39914Courtesy of FORD MOTOR COMPANY
