Coolant Inlet Pipe: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

1.

Remove the thermostat housing. REFER to: Thermostat Housing .

2.

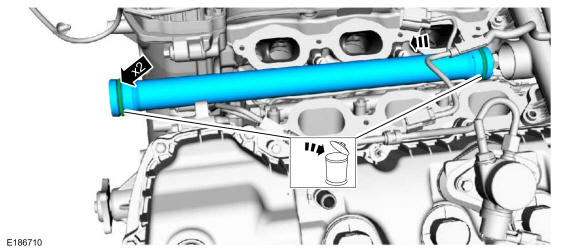

NOTE: Intake manifold removed for clarity.
- Remove the coolant pipe.
- Discard the O-ring seals.

Courtesy of FORD MOTOR COMPANY
