Coolant Inlet Pipe: Installation

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

1.

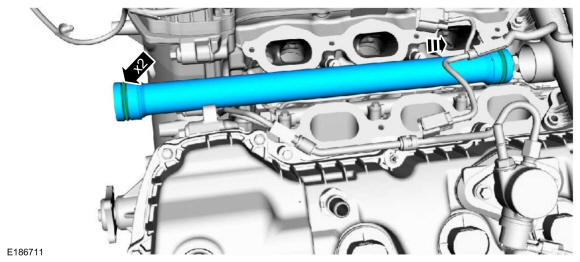

NOTE: Intake manifold removed for clarity.
- Install new O-ring seals and lubricate them with clean engine coolant.
  Material

  : Motorcraft® Orange Concentrated Antifreeze/Coolant / VC-3-B (WSS-M97B44-D)
- Install the coolant pipe.

Courtesy of FORD MOTOR COMPANY

2.

Install the thermostat housing. REFER to: Thermostat Housing .
