Coolant Crossover Manifold: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

1.

Drain the cooling system. REFER to: Cooling System Draining and Vacuum Filling .

2.

Remove the intake manifold. REFER to: INTAKE MANIFOLD (303-01C Engine - 3.5L EcoBoost (272kW/370PS), Removal and Installation).

3.

Disconnect the coolant hose.
Use the General Equipment: Hose Clamp Remover/Installer

Courtesy of FORD MOTOR COMPANY

4.

NOTE: Do not allow the coolant inlet pipe to come out of thermostat housing or the coolant inlet pipe O-ring seal may be damaged.

NOTE: Use the ear on the top of the coolant inlet pipe to prevent the coolant pipe from coming out of the thermostat housing.

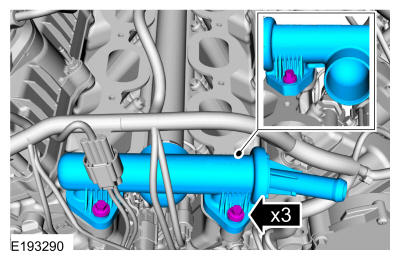

Remove the bolts and the coolant crossover manifold.

Courtesy of FORD MOTOR COMPANY

5.

Remove and discard the gaskets.

Courtesy of FORD MOTOR COMPANY

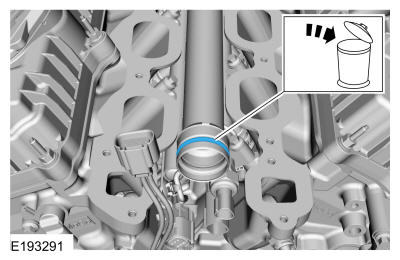

6.

Remove and discard the O-ring seal.

Courtesy of FORD MOTOR COMPANY
