Coolant Crossover Manifold: Installation

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

1.

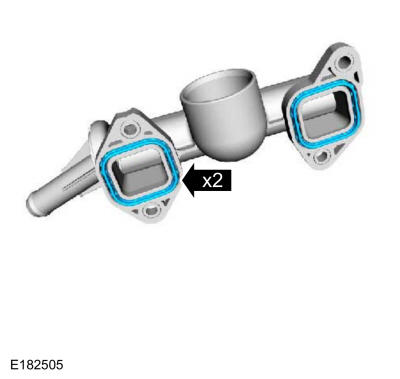

Install new gaskets.

Courtesy of FORD MOTOR COMPANY

2.

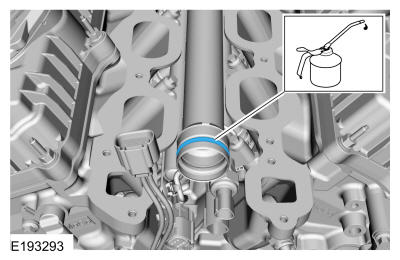

Install a new O-ring seal and lubricate it with clean engine coolant.
Material

: Motorcraft® Orange Concentrated Antifreeze/Coolant / VC-3-B (WSS-M97B44-D)

Courtesy of FORD MOTOR COMPANY

3.

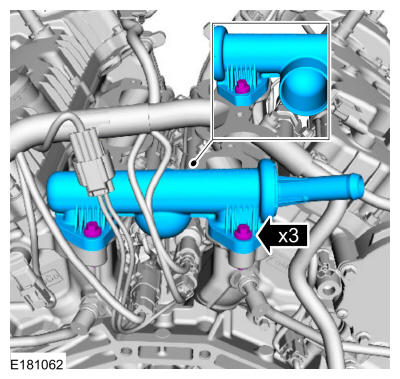

Install the coolant crossover manifold and the bolts.
Torque:

Stage 1: 89 lb.in (10 Nm)

Stage 2: 45°

Courtesy of FORD MOTOR COMPANY

4.

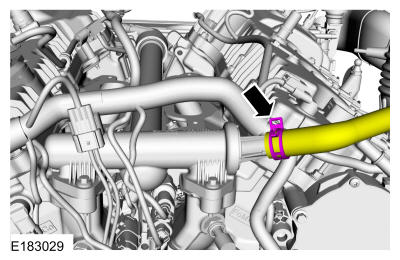

Connect the coolant hose.
Use the General Equipment: Hose Clamp Remover/Installer

Courtesy of FORD MOTOR COMPANY

5.

Install the intake manifold. REFER to: INTAKE MANIFOLD .

6.

Fill and bleed the cooling system. REFER to: Cooling System Draining and Vacuum Filling .
