Block Heater: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Thermostat mounted (if equipped)

1.

Remove the air cleaner outlet pipe. REFER to: AIR CLEANER OUTLET PIPE .

2.

NOTE: Make sure the block heater wiring is routed and secured away from rotating or hot components.

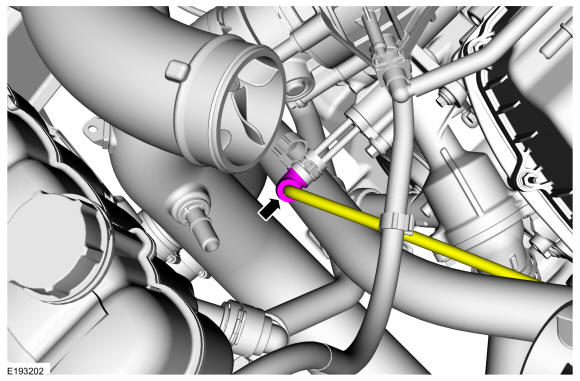

Disconnect the block heater electrical connector and harness clip.

GFD40810

Courtesy of FORD MOTOR COMPANY

3.

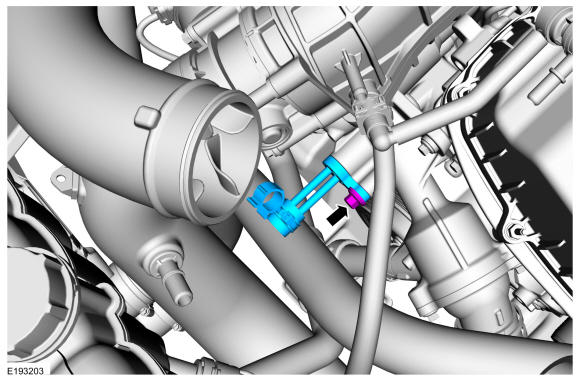

Remove the stud bolt and the block heater.
Torque

: 55 lb.in (6.2 Nm)

GFD40811

Courtesy of FORD MOTOR COMPANY

4.

Block mounted (if equipped)

5.

Drain the cooling system. REFER to: Cooling System Draining and Vacuum Filling .

6.
- If equipped, remove the bolts.
- Remove the retainers and remove the rear underbody shield.
  Torque

  : 71 lb.in (8 Nm)

GFD38415

Courtesy of FORD MOTOR COMPANY

7.

NOTE: Vehicles come with an underbody shield or a skid plate.
- If equipped, remove the pin-type retainers.
- Remove the bolts and the front underbody shield.
  Torque

  : 71 lb.in (8 Nm)

GFD39150

Courtesy of FORD MOTOR COMPANY

8.

NOTE: Vehicles come with an underbody shield or a skid plate.

If equipped, remove the bolts and the skid plate.

Torque

: 30 lb.ft (40 Nm)

GFD40812

Courtesy of FORD MOTOR COMPANY

9.

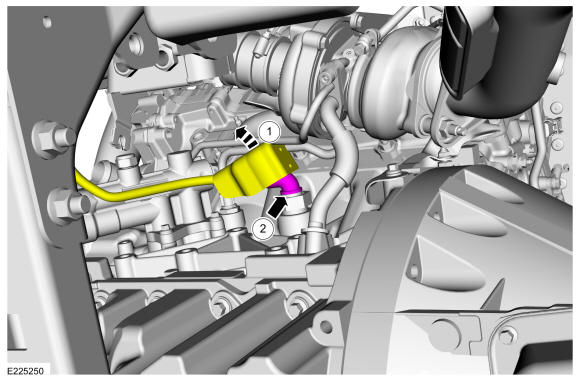

1. 1.

  Position the block heater harness heat shield aside.
1. 2.

  Disconnect the block heater electrical connector.

GFD40813

Courtesy of FORD MOTOR COMPANY

10.

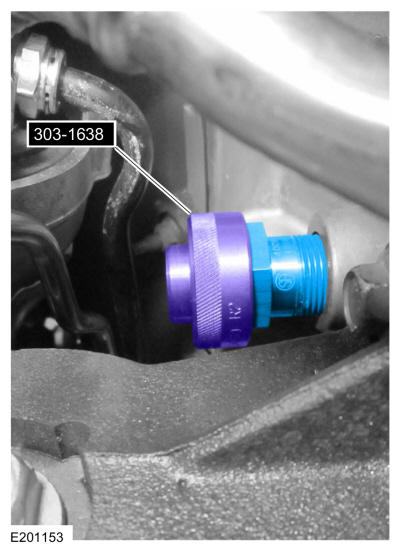

Using the block heater socket remove the block heater.
Use Special Service Tool: 303-1638 Socket, Block Heater.

Torque

: 30 lb.ft (40 Nm)

GFD40814

Courtesy of FORD MOTOR COMPANY
