Removal And Installation: Thermostat: Removal
WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- 1.
Drain the cooling system. REFER to: Cooling System Draining and Vacuum Filling .
- 2.
Remove the air cleaner outlet pipe. REFER to: AIR CLEANER OUTLET PIPE .
- 3.NOTE: Cover the accessory drive belts to prevent coolant contamination of the belts.
Completely cover the accessory drive belts with waterproof plastic.

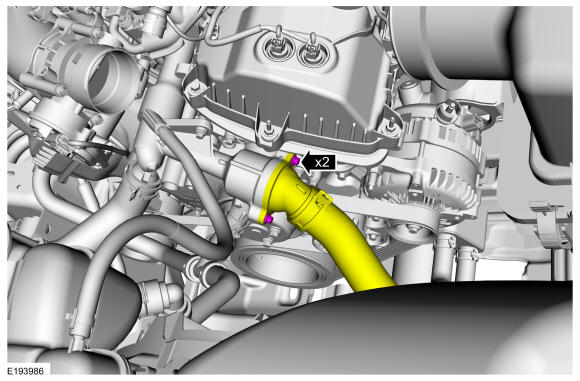

- 4.NOTE: During installation, make sure the coolant outlet connection is fully seated on the thermostat housing before tightening the bolts.
Remove the bolts and detach the coolant inlet connector.
Torque
: 89 lb.in (10 Nm)
- 5.

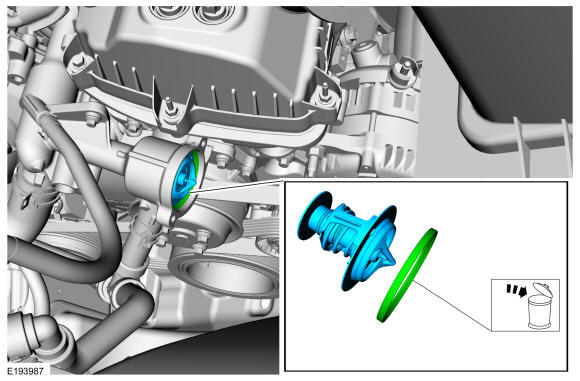

- Remove the thermostat and discard the O-ring seal.
- Install a new O-ring seal and lubricate it with clean engine coolant.
Material
: Motorcraft® Orange Concentrated Antifreeze/Coolant / VC-3-B (WSS-M97B44-D)
