Coolant Pump: Installation
WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
- 1.
Install a new coolant pump gasket and O-ring seal.
 Courtesy of FORD MOTOR COMPANY
|
- 2.
Install the coolant pump and the bolts.Torque:
Stage 1: 89 lb.in (10 Nm)
Stage 2: 45°
 Courtesy of FORD MOTOR COMPANY
|
- 3.

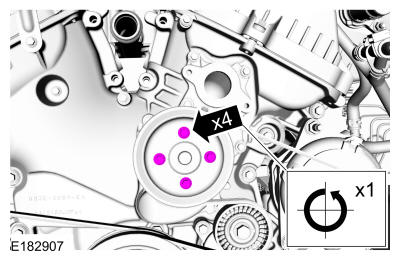

Position the coolant pump pulley and install the bolts finger tight.
 Courtesy of FORD MOTOR COMPANY
|
- 4.
Install the thermostat housing. REFER to: Thermostat Housing .
- 5.
Remove the plastic from the A/C compressor belt.
- 6.
Install the accessory drive belt. REFER to: ACCESSORY DRIVE BELT
.
- 7.

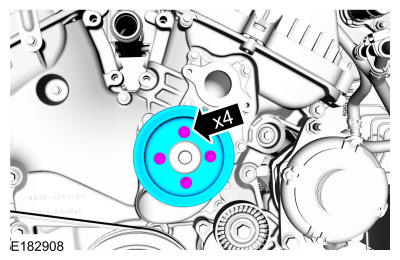

Tighten the coolant pump pulley bolts.Torque
: 18 lb.ft (24 Nm)
 Courtesy of FORD MOTOR COMPANY
|
- 8.
Position the degas bottle back and tighten the bolts.Torque
: 62 lb.in (7 Nm)
 Courtesy of FORD MOTOR COMPANY
|
- 9.
Install the air cleaner outlet pipe. REFER to: AIR CLEANER OUTLET PIPE
.
- 10.
Fill and bleed the cooling system. REFER to: Cooling System Draining and Vacuum Filling .
