Engine Cooling - Component Location
WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

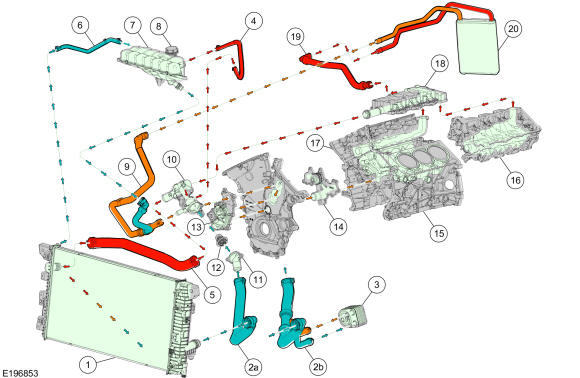

Coolant temperature will vary with ambient temperature and load. Temperatures shown are for ambient temperature of 38°C (100°F). Red arrows indicate a temperature over 82.2°C (180°F), Orange arrows indicate a temperature of approximately 82.2°C (180°F), Blue arrows indicate a temperature below 82.2°C (180°F).
| Item | Description |
|---|---|
| 1 | Radiator |
| 2a | Lower radiator hose and clamp assembly (without oil cooler) |
| 2b | Lower radiator hose and clamp assembly (with oil cooler) |
| 3 | Oil cooler |
| 4 | Thermostat housing-to-degas bottle hose |
| 5 | Upper radiator hose and clamp assembly |
| 6 | Radiator-to-degas bottle hose |
| 7 | Degas bottle |
| 8 | Pressure relief cap |
| 9 | Heater outlet hose |
| 10 | Thermostat housing |
| 11 | Coolant inlet connection |
| 12 | Thermostat |
| 13 | Coolant pump |
| 14 | Cylinder block coolant pump hole cover |
| 15 | Cylinder block |
| 16 | Cylinder head LH |
| 17 | Cylinder head RH |
| 18 | Lower intake manifold |
| 19 | Heater hose inlet |
| 20 | Heater core |
